Product Description
Scotchlok Block Fork Nylon Insulated

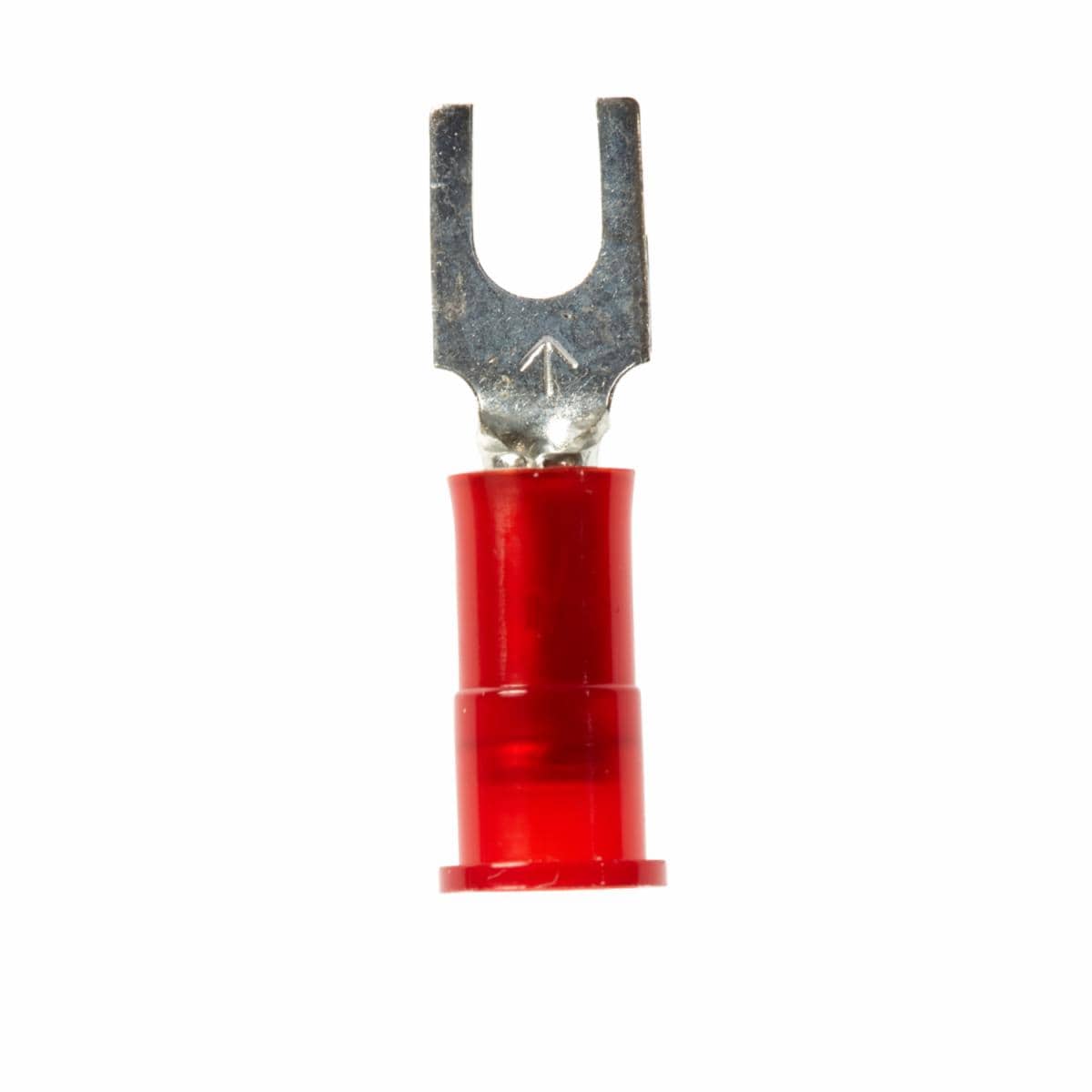

3M Scotchlok Small Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Block Fork Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.003 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | .0823 mm² |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | 0.326 mm² |
| Length | |
| Width | |
| Barrel Inside Diameter | 0.070 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Clearance (C) | 0.25 Inch |
| Dimension E | 0.69 Inch |
| Fork Type | Block |
| Insulation Material | Nylon with Insulation Grip |
| Material | |
| pa_maximum-insulation-outside-diameter | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_maximum-recommended-voltage-rating | |
| Product Color | Red |
| Stud Size | #6 |
| Terminal Style | Block |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 9.4 × 3.6 × 5.1 in |
