Product Description

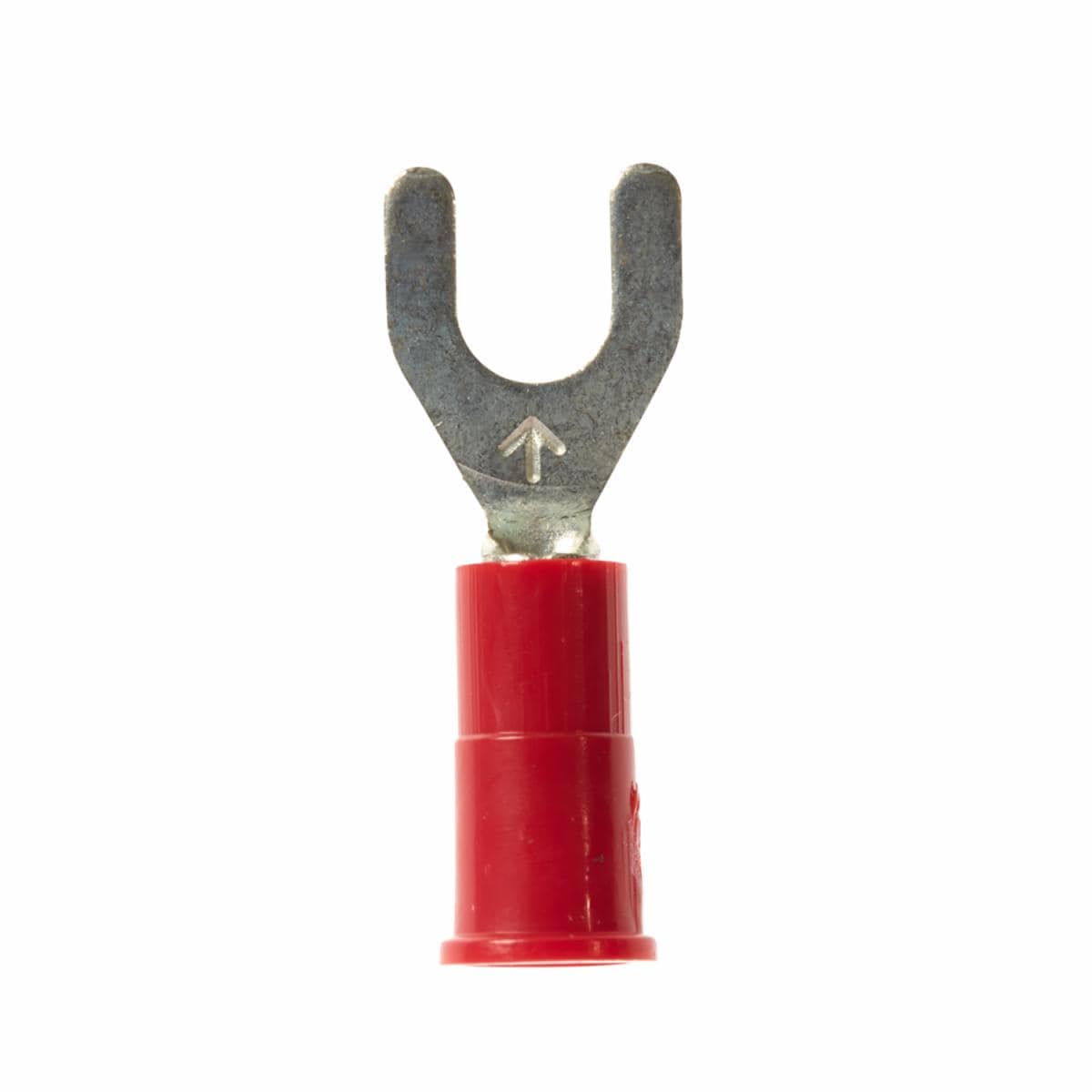

Scotchlok Fork
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Electrolytic copper construction offers good conductivity
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Wider-tongue design for use on free-standing studs
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Fork, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.203 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | .0823 mm² |
| Minimum Conductor Size | 0.326 mm² |
| Barrel Inside Diameter | 0.07 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Brazed |
| CSA File Number | LR22190 |
| Clearance (C) | 0.29 Inch |
| Dimension E | 0.74 Inch |
| Fork Type | Standard Fork |
| Insulation Material | Vinyl |
| pa_maximum-insulation-outer-diameter-imperial | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_operating-temperature-range-celsius | |
| pa_operating-temperature-range-fahrenheit | |
| Overall Length (Imperial) | 0.9 in |
| Overall Width (Imperial) | 0.34 in |
| Stud Size | #8 |
| Terminal Style | Standard |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 5.1 × 4.6 × 3.1 in |
