Product Description

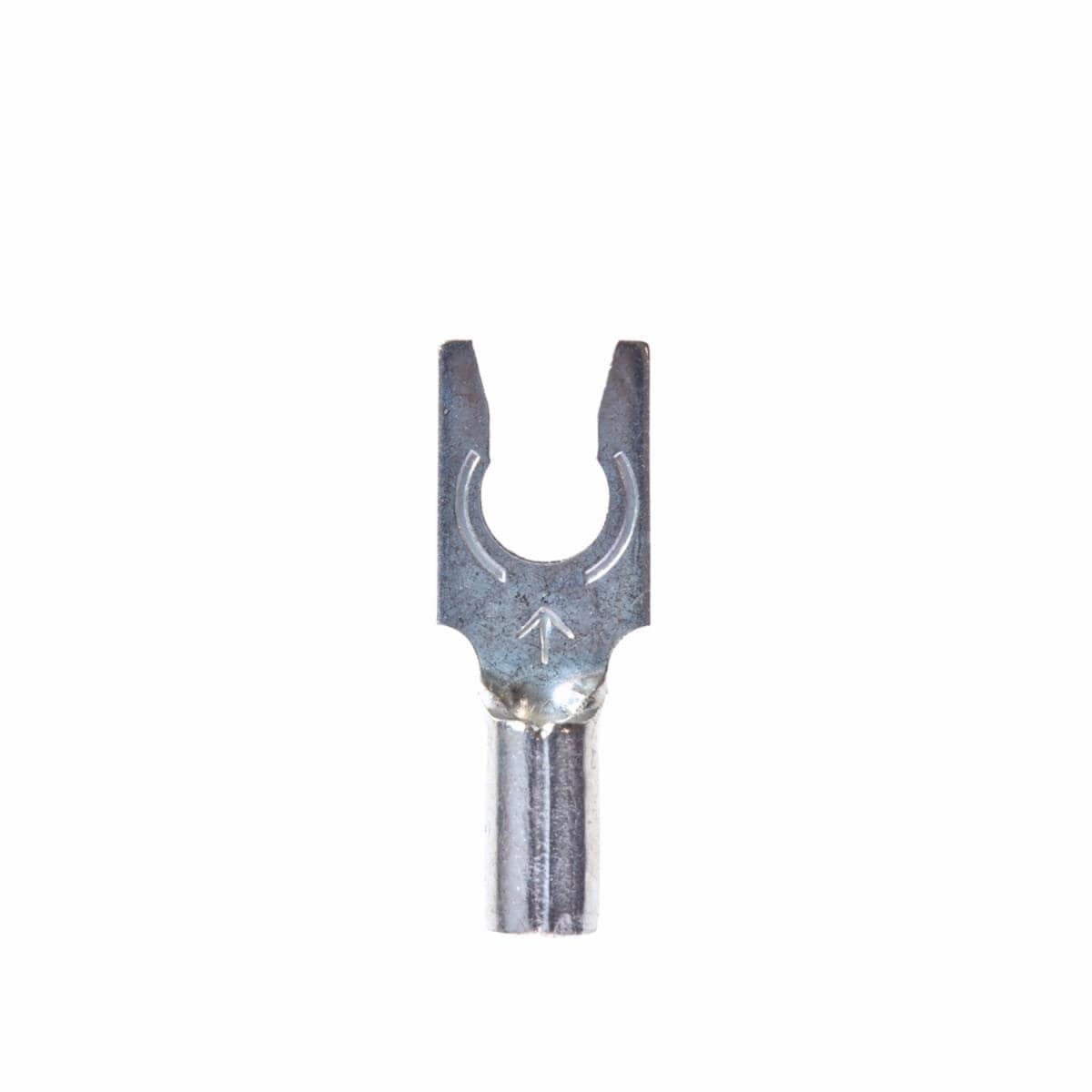

Scotchlok Locking Fork
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Beveled mouth offers easy insertion of wires
- Electrolytic copper construction offers good conductivity
- Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Spring-like tongue firmly fits around the stud
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Scotchlok Locking Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Locking Fork, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 3.479 lbs |
| Make to Order | |
| Brand | |
| Maximum Conductor Size | .0823 mm² |
| Minimum Conductor Size | 0.326 mm² |
| Barrel Inside Diameter | 0.07 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Brazed |
| CSA File Number | LR22190 |
| Clearance (C) | 0.25 Inch |
| Dimension E | 0.5 Inch |
| Fork Type | Locking Fork |
| Insulation Material | Non-insulated |
| Maximum Lock Width | 0.27 Inch |
| Overall Length (Imperial) | 0.68 in |
| Overall Width (Imperial) | 0.25 in |
| Stud Size | #6 |
| Terminal Style | Locking |
| Terminal Type | Fork |
| UL File Number | E23438 |
| Units Per Case | |
| Dimensions | 4.5 × 3.3 × 3.1 in |
