Product Description

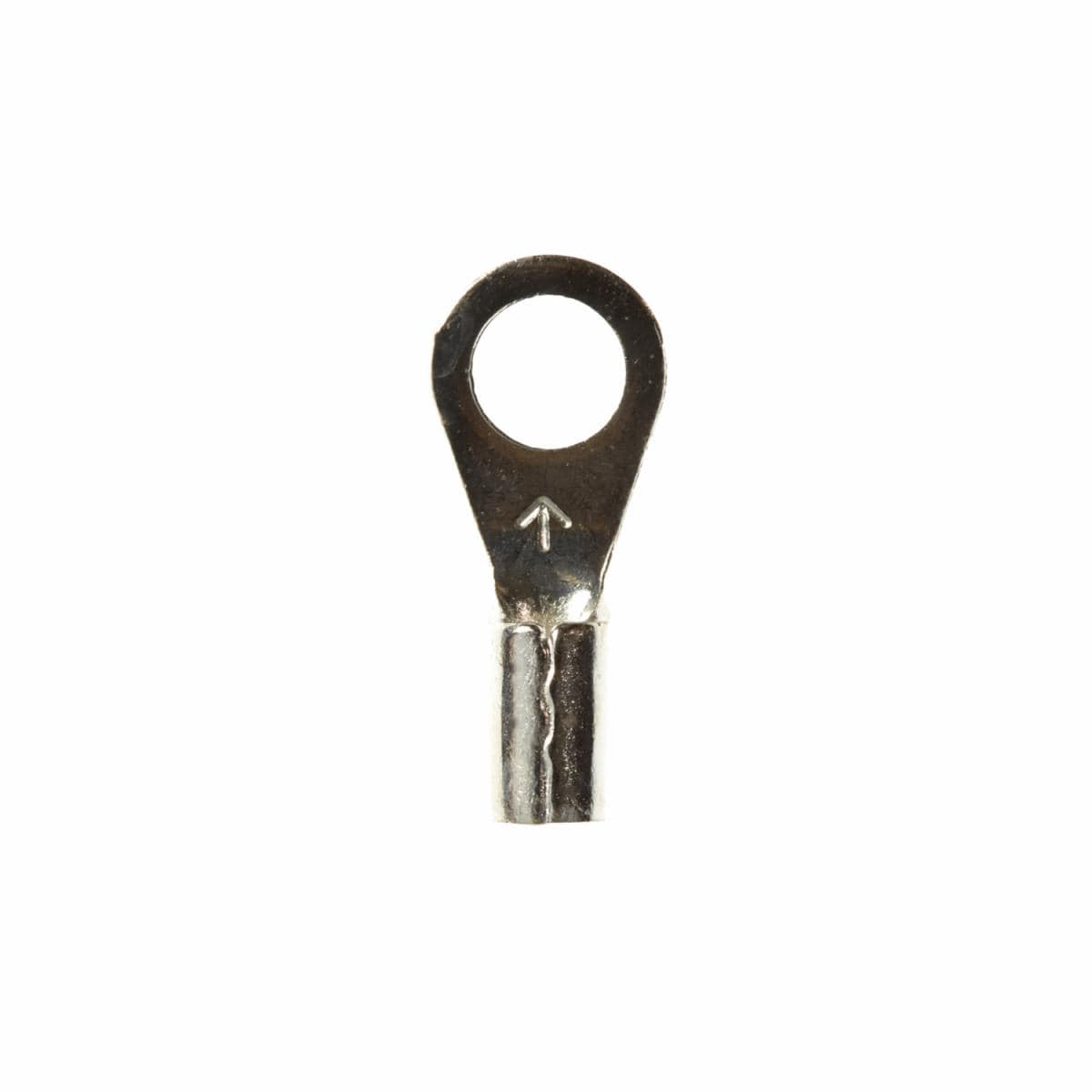

Scotchlok Ring Tongue
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
For more information about Scotchlok Ring Tongue, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 2.003 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.19 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.31 mm² |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Brazed |
| CSA File Number | LR22190 |
| Connection Type | Crimp |
| Insulation Material | Non-insulated |
| pa_maximum-operating-temperature-celsius | |
| Overall Length (Imperial) | 0.74 in |
| Overall Width (Imperial) | 0.31 in |
| Ring Type | Standard |
| Terminal Style | Standard |
| Terminal Type | Ring |
| UL File Number | E23438 |
| Dimensions | 4.5 × 3.3 × 3.1 in |
