Product Description

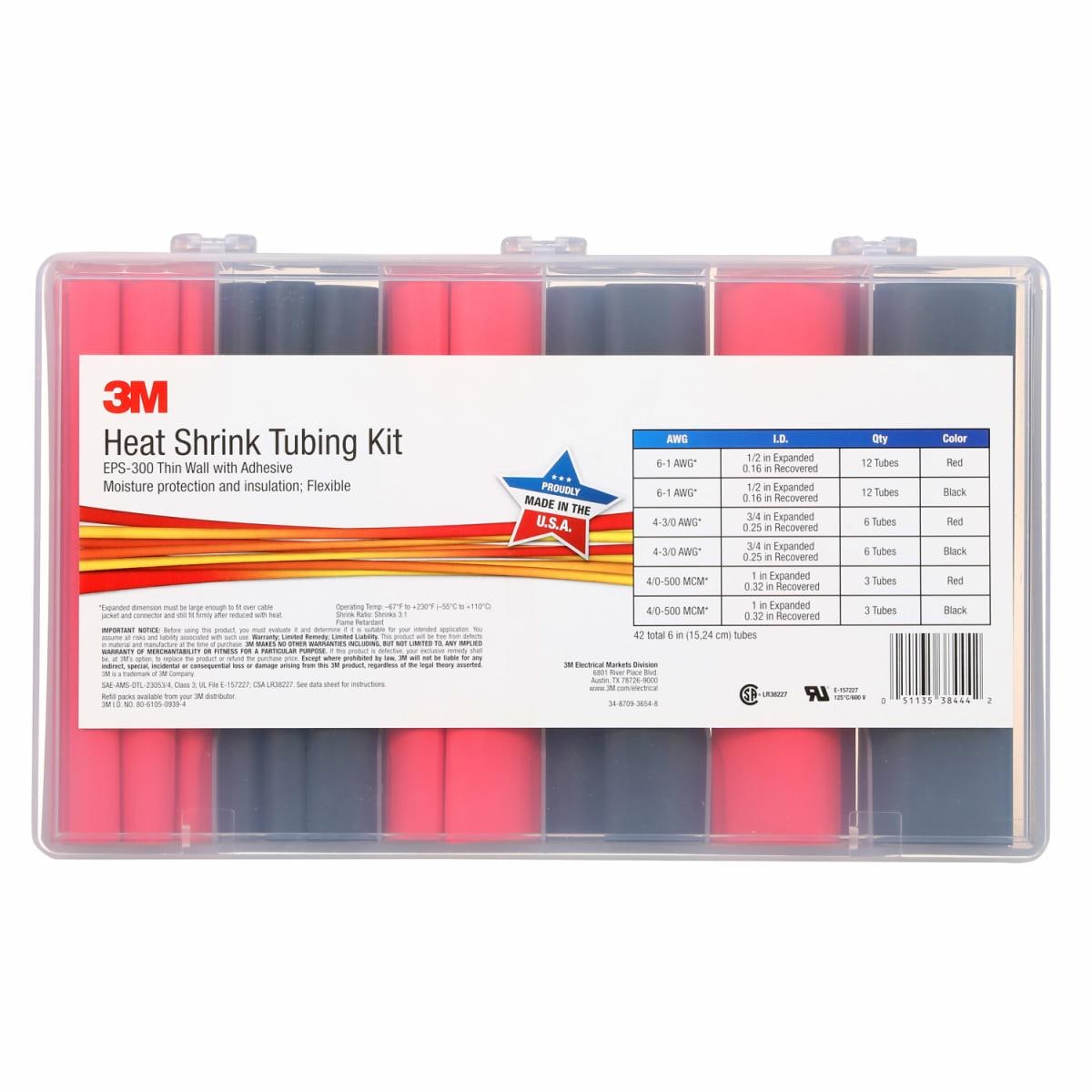

Thin-Wall Heat Shrink Tubing EPS-300
- Dual-wall construction provides abrasion resistance and moisture-seal protection
- Flame-retardant tubing is rated for 600V applications
- Made of black flexible polyolefin
- Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
- Offers the advantage of integral, adhesive-lined construction
- Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
3M Heat Shrink Tubing EPS-300 is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles and harness breakouts. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance and helps to maintain the high flow as well as good adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands a wide temperature range of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Thin-Wall Heat Shrink Tubing EPS-300, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 7.8 lbs |
| Brand | |
| Inner Diameter After Shrink | 0.15 in |
| Inner Diameter Before Shrink | 0.3 in |
| Adhesive Material | |
| Elongation | |
| Flame Retardant | |
| Heat Shrink Type | Adhesive-Lined Polyolefin Heat Shrink Tubing |
| Material | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| Minimum Expanded Tubing I. D. | 0.3 in |
| Non-Corrosive | Yes |
| pa_operating-temperature-celsius | |
| pa_operating-temperature-fahrenheit | |
| pa_operating-temperature-range-celsius | |
| pa_operating-temperature-range-fahrenheit | |
| Overall Length (Imperial) | 48 in |
| Product Color | Red, Black |
| Shrink Ratio | 3:1 |
| Tensile Strength (Imperial) | 2100 psi |
| Tubing Type | Dual Wall (Adhesive Lined) |
| UL File Number | E-157227 |
| Units Per Case | |
| Dimensions | 13.4 × 11.9 × 7.8 in |
