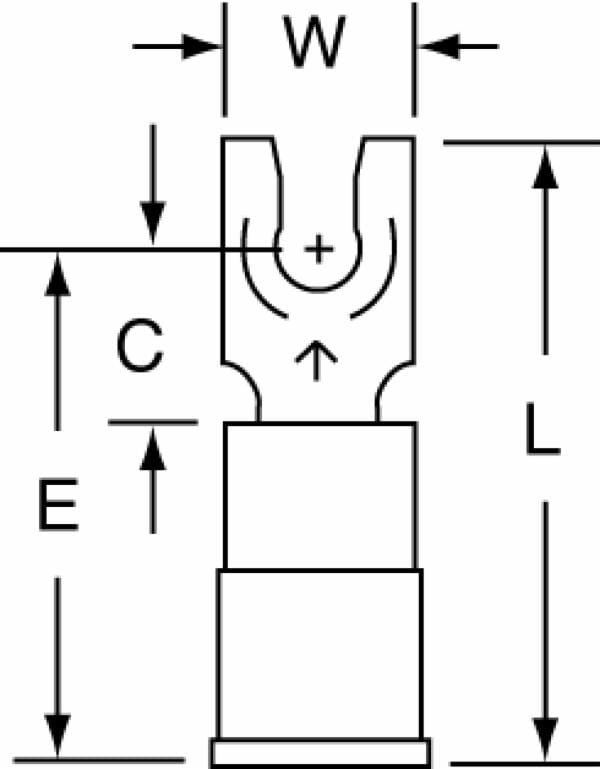

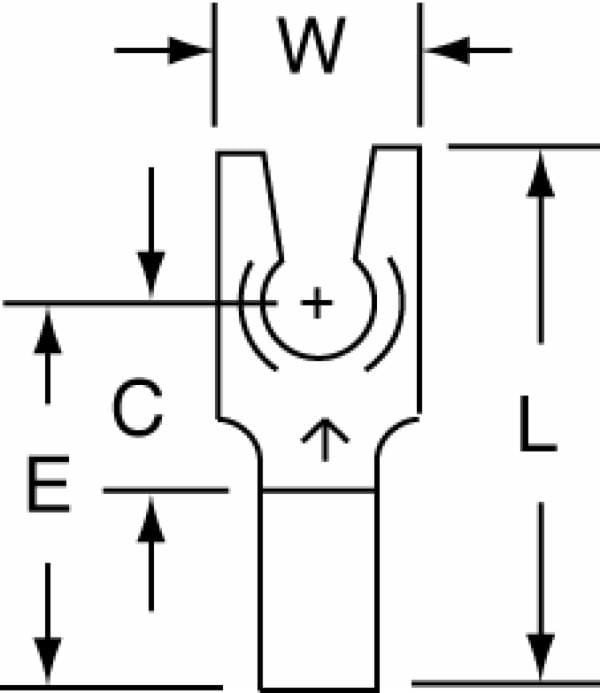

3M Locking Fork Terminal has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M Cold Shrink Quick Insulator QI Series consists of open-ended and factory-expanded tubular rubber sleeves that feature sealing mastic on each end loaded on a removable plastic core. To install the connection, position it over the inline connector, pull the loose tab on the plastic core while unwinding the core in a counterclockwise direction, allowing the ends of the tube to shrink and form a secure seal. The core and tube sizing, combined with sealing mastic at each end, allow for a broader application range while preserving the seal and insulation properties of the EPDM rubber tube.

Designed for primary insulation of solid dielectric insulated wires and cable splices rated up to 1000 volts, the insulators allow for direct burial or submersible applications. They are easy to install by hand, requiring no additional tools or heating sources. Accommodating a variety of cable sizes, 3M Cold Shrink Quick Insulator QI Series provides reliable thermal stability, high chemical resistance, and a water-resistant seal that meets the standard for ANSI C-119.1. These insulators are ideal for dig-in and sheath repairs, inline conductor transition connectors, and secondary splices for both copper and aluminum conductors, withstanding an operating temperature range between -40 °F to 194 °F (-40 °C to 90 °C).

When you need dependable insulating properties with long-lasting resiliency and pressure performance, 3M Cold Shrink Quick Insulator QI Series is your go-to solution.

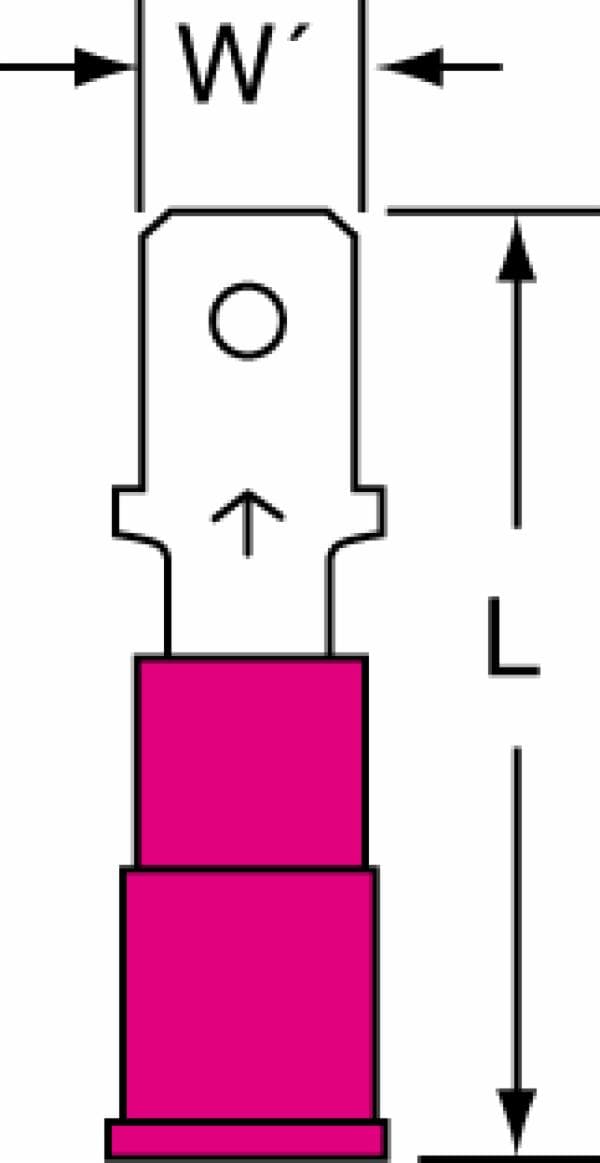

3M Highland Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M Parallel Connector ensures an ideal fit while offering reliable and safe performance. The connector withstands a maximum temperature of 347 degrees F (175 degrees C). An electrolytic copper terminal offers good conductivity and a tin plated finish

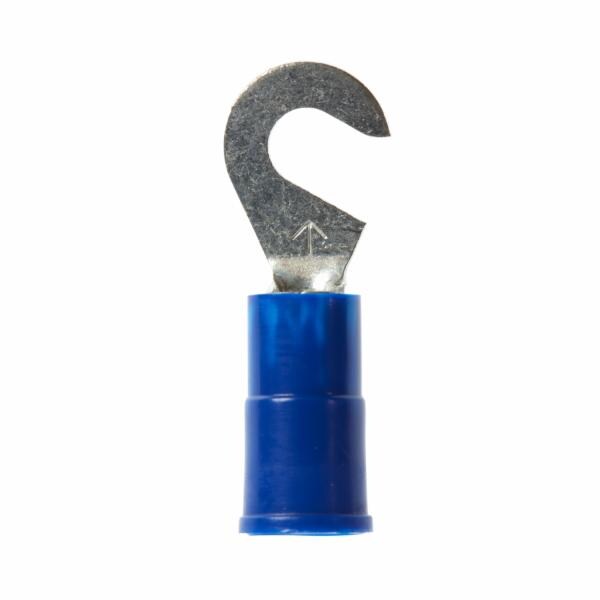

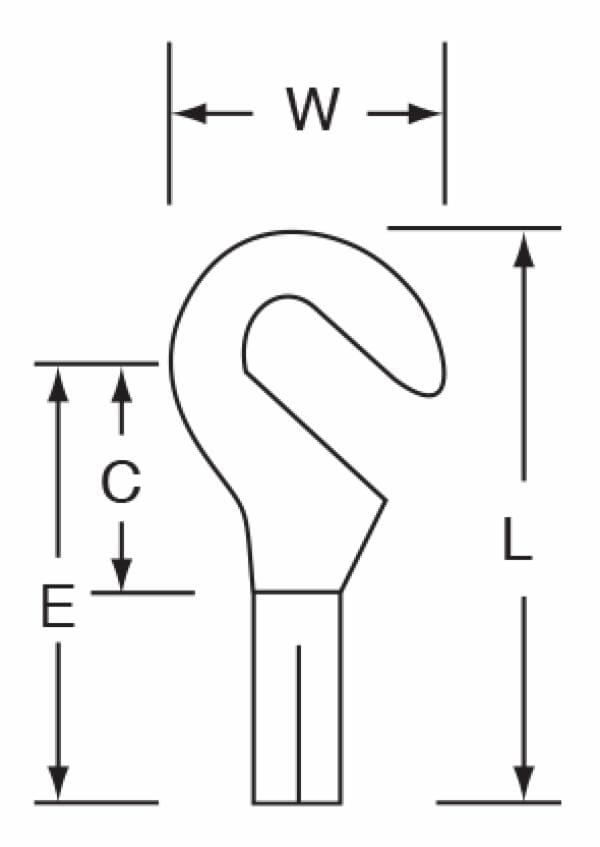

3M Hook Terminal allows terminal to wrap around a portion of a free-standing stud for a secure and reliable connection. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M Hook Terminal allows terminal to wrap around a portion of a free-standing stud for a secure and reliable connection. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

3M Hook Terminal allows terminal to wrap around a portion of a free-standing stud for a secure and reliable connection. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M Hook Terminal allows terminal to wrap around a portion of a free-standing stud for a secure and reliable connection. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

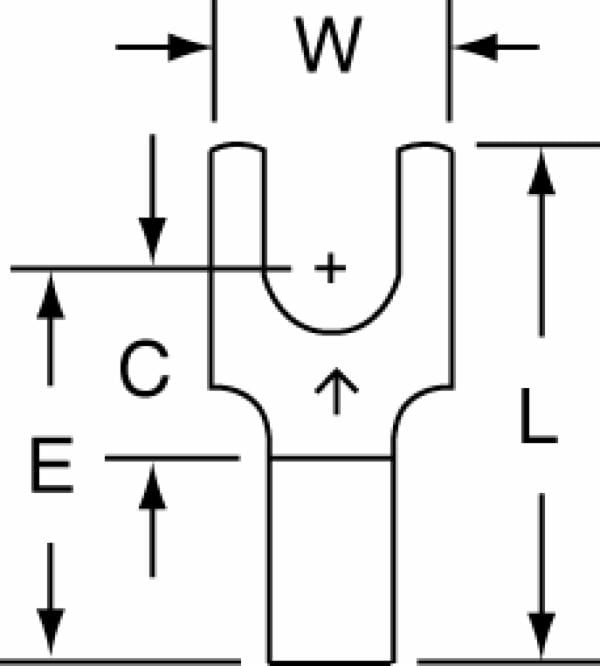

3M Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M Highland Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
