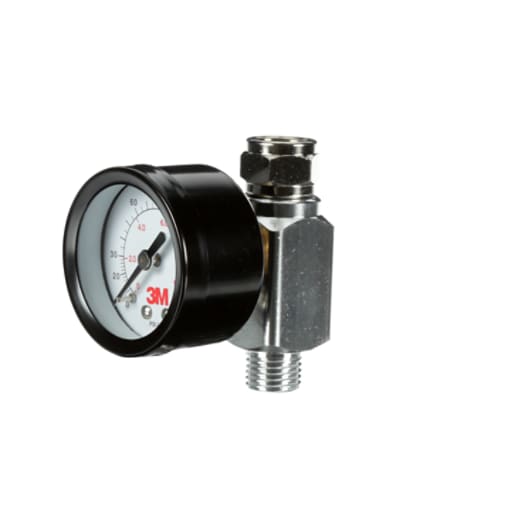

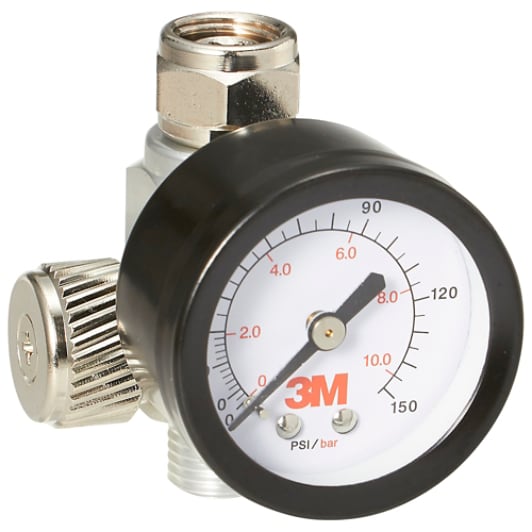

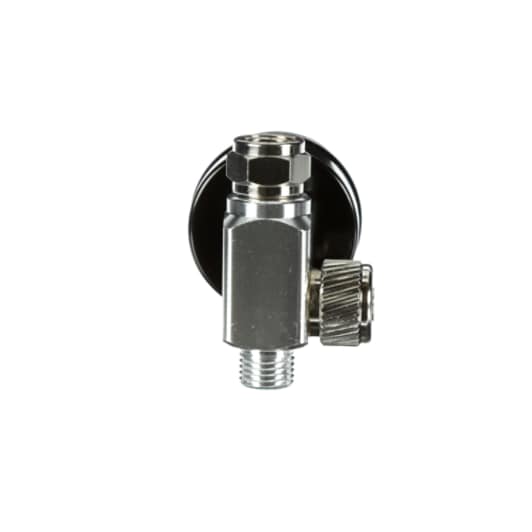

3M™ Accuspray™ Air Flow Control Valve 16573, 1 per case

• Regulator and valve in one unit allows for effortless air pressure setting and control
• Helps ensure optimal atomization for HVLP paint application, reducing rework
• Helps reduce overspray and material consumption
• Gauge provides simple, clear operation and readings for easy adjustment
• Fast setup – connects quickly to 3M™ Accuspray™ spray gun bases
• Can also be used with non-Accuspray™ equipment such as stone chip applicators
• Air Inlet is ¼” -19 BPS male thread

The 3M™ Accuspray™ Air Flow Control Valve 16573 is a vital component for the Accuspray™ HVLP spray gun system. For use with any 3M™ Accuspray™ spray gun, it allows technicians to set and adjust air flow for each specific paint application, maximizing paint quality and cost savings. It can also be used with other spray guns or equipment requiring air pressure control, such as stone chip applicators.

Easy, Fast HVLP Air Pressure Control

As one simple unit that allows you to easily set and adjust HVLP air pressure, 3M™ Accuspray™ Air Flow Control Valve 16573 is a vital part of the Accuspray™ paint application system. This regulator-and-control-valve-in-one helps to ensure that operators are applying paint and other auto body materials at the optimal air pressures, greatly reducing excessive orange peel and other common causes of increased sanding and rework. With a simple twist, you can set operating air pressures for the proper flows during first stage or full trigger application and easily adjust for factors including fluid viscosity, temperature, atomizing head size and more. It makes for better consistency across jobs, too, since operators can record the readings used on one application and use them again on other, similar jobs.

The Regulator and Air Flow Control Valve features single knob operation, a clear, easy-to-read gauge and secure fittings for quick integration onto a 3M Accuspray™ spray gun and into the Accuspray™ system. It can also be used on non- Accuspray™ spray guns and equipment such as stone chip applicators where adjustable air pressure is important.

A Spray System That Pays Off

The 3M™ Accuspray™ Regulator and Air Control Valve works with our 3M Accuspray™ System, the equivalent of having a brand-new primer gun on demand. The unit maximizes air flow through replaceable atomizing heads to deliver the ideal usable pattern and very low overspray. These atomizing heads are clear so it’s easy to see when the head is clean, and the spray guns perform like new every time the atomizing head is replaced – the equivalent of a new spray gun, at a fraction of the cost. The benefits include reduced primer consumption, lower application time and less time for cleanup, plus a better finish which results in less sanding time. The end result: cleaner, more productive, more profitable collision repair operations.

3M™ Accuspray™ System Includes:

• 3M™ Accuspray™ Spray Gun (1 HVLP Primer Gun, 3 Nozzles)
• 3M™ Accuspray™ Atomizing Head Dispenser
• 3M™ Accuspray™ Atomizing Head Refill Kit
• 3M™ Accuspray™ Fluid Needle
• 3M™ Accuspray™ Test Air Cap
• 3M™ Accuspray™ Regulator and Air Flow Control Valve

The Science of Better Paint Application from 3M

3M has spent a lot of time applying the latest science to the Accuspray™ paint application system and applying science to the lives of collision repair professionals. As an integral part of the system, the Accuspray™ Regulator and Air Flow Control Valve is another example: products to consistently improve your efficiency, throughput and value as you prepare painted surfaces.
