Product Description

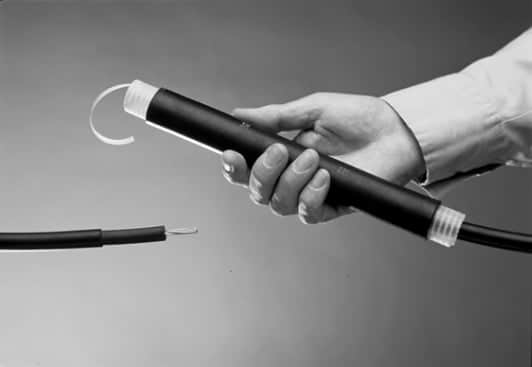

Cold Shrink Inline Splice 5743
- Designed for use with 10000, 11000 and 20000 Series inline compression connectors
- Perfect for splicing non-shielded, wet/dry solid dielectric power cables
- Rated for 5/8 kV applications
- RoHS 2011/65/EU Compliant
- The rubber mastic filler removes time-consuming penciling of cable insulation
The 3M Cold Shrink Splicing Products are designed using the proprietary cold shrink delivery system developed by 3M. Products are supplied prestretched on a removable core for efficiency and ease of installation. 3M Cold Shrink Splices 5740 Series are used for single conductor, non-shielded 5/8 kV cables. Each kit is a cold shrink design and contains enough material to insulate three splices. Connectors are not included and must be ordered separately. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation outside diamater.
For more information about Cold Shrink Inline Splice 5743, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 4.9 lbs |
| Brand | |
| Conductor Sizes | 1000 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil |
| Insulation Outer Diameter | |
| Maximum Conductor Size | 400 mm² (Aluminum), 500 mm² (Copper) |
| Minimum Conductor Size | 185 mm² (Copper), 185 mm² (Aluminum) |
| Cable Shielding | Non-shielded |
| Case Quantity | 1 |
| Conductor Material | Copper, Aluminum |
| Insulation Level | 100 %, 133 % |
| Insulation/Jacket O.D. Range | 0.90 – 2.10 in |
| pa_insulation-jacket-o-d-range-metric | |
| Maximum Connector Length | 6.25 inch |
| pa_maximum-connector-length-cu-or-al | |
| pa_maximum-connector-length-cu-or-al-metric | |
| pa_maximum-connector-length-metric | |
| Number of Conductors | 1 |
| Product Series | 5740 Series |
| Splice Type | |
| Suitable for High Voltage | No |
| Typical Splice Length | 15 in |
| Typical Splice Length (Metric) | 381 mm |
| Voltage | 5/8 kV, 5 kV, 8 kV |
| Dimensions | 18.8 × 6.3 × 8.6 in |
