Product Description

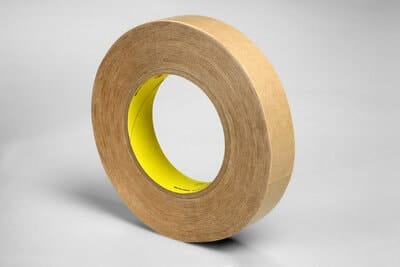

Double Coated Tape 9576
- Bonds well to most substrates, including low surface energy plastics
- Conformable to irregular surfaces
- Double sided adhesion increases dimensional stability for easy handling
- Excellent UV and heat resistance
- Excellent peel and shear strength to withstand rigorous splicing applications
- Medium tack double coated tape for roll-to-roll splicing, core starting and roll closing
Ideal for Rigorous Splicing Applications 3M Double Coated Tape 9576 is a 4.0 mil double coated tape with a hand-tearable clear polypropylene carrier lined on both sides with 3M Adhesive 400. Once bonded, this tape provides excellent peel and shear strength – making it ideal for rigorous splicing applications and bonding plastics to metals. 3M Double Coated Tape 9576 is mounted on a tan 60# densified kraft paper liner for ease in die-cutting applications. Recommended Applications • Web splicing • Core starting • General purpose bonding Provides Reliable Performance The medium-firm pressure sensitive acrylic adhesive system features an excellent balance of good initial adhesion (quick stick) and good shear holding power. The formulation gives a consistently strong bond across a range of temperatures, up to 165°F (75°C).
A thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications, such as die-cutting and automated dispensers. Understanding Double Coated Tape In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser.
Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby industries, among others.
For more information about Double Coated Tape 9576, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 24.4 lbs |
| Brand | |
| Back Side Adhesive Thickness | 0.04 mm |
| Backing (Carrier) Thickness | 0.025 mm |
| Face Side Adhesive Thickness | 0.04 mm |
| Master Size Length | 329.2 m |
| Master Size Width | |
| Length | |
| Width | |
| Primary Liner Thickness | 0.1 mm |
| pa_total-tape-thickness-without-liner | |
| Application | Zero-Speed and General Splicing |
| Back Side Adhesive Type | High Tack Acrylic 400 |
| Backing (Carrier) Material | Polypropylene |
| Carrier Material | |
| Carrier Thickness | 1 mil |
| Carrier Thickness (Metric) | 0.03 mm |
| Face Side Adhesive Type | High Tack Acrylic 400 |
| Industries | Print, General Industrial, Paper |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_minimum-operating-temperature-fahrenheit | |
| Overall Thickness (Imperial) | 4 mil |
| Primary Liner | |
| Primary Liner Color | |
| Product Color | Transparent |
| Product Form | Roll |
| Set Time | |
| Shelf Life | |
| pa_shelf-life-in-months-from-date-of-manufacture | |
| Storage Temperature (Celsius) | 22 °C |
| pa_storage-temperature-fahrenheit | |
| Tape Type | |
| Units Per Case | |
| Dimensions | 13.4 × 13.4 × 10.6 in |
