7100269704

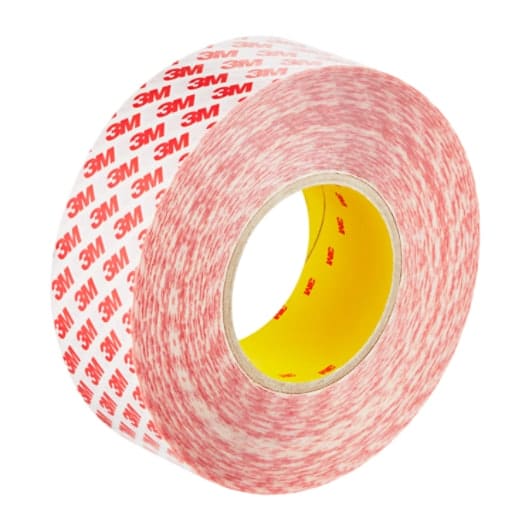

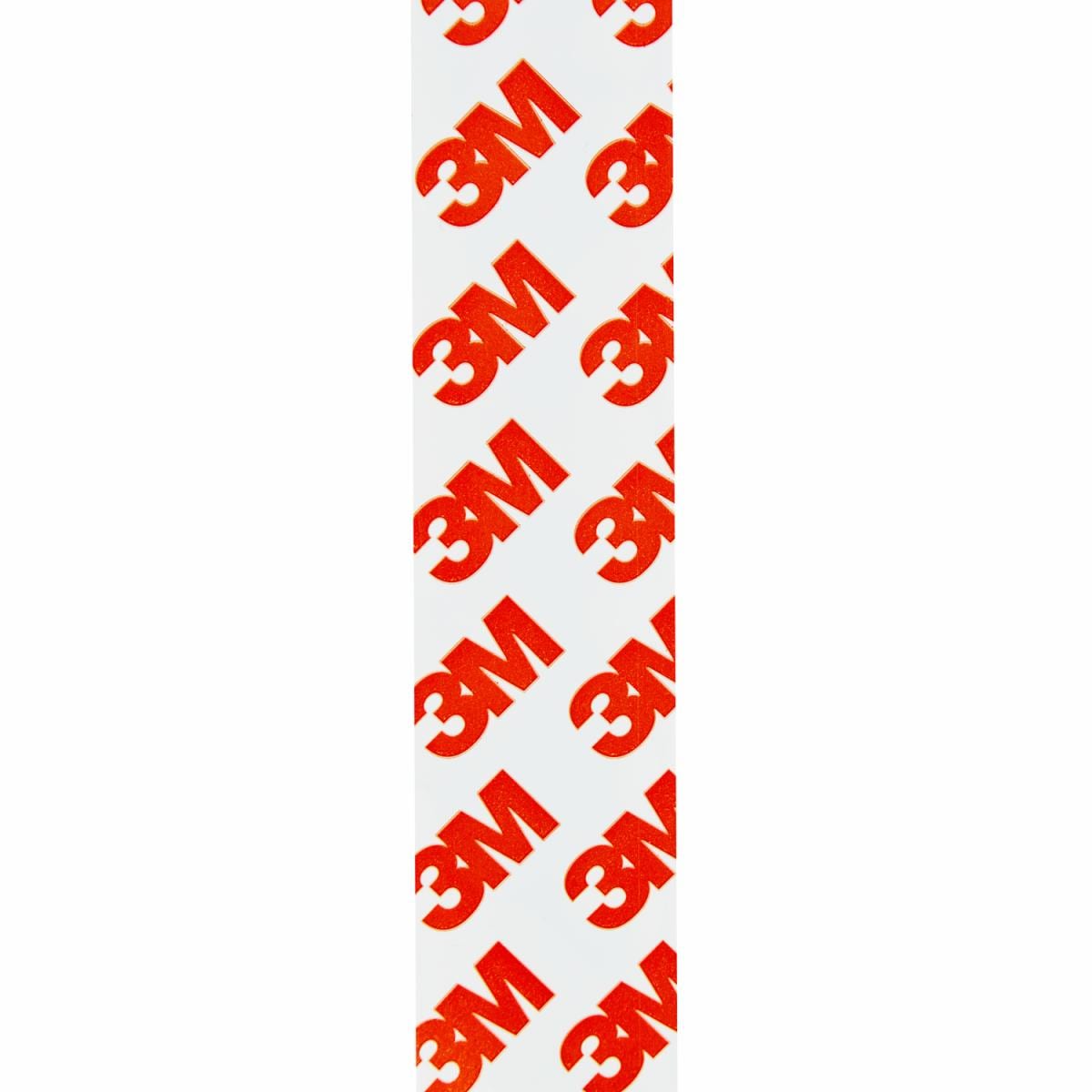

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project. More Info

This product has been discontinued.

View Similar Product

Product Description

Whether you are bonding or mounting, 3M™ Double Coated Tape GPT-020 provides reliable performance across various applications. As a leader in innovative products, you can trust the expertise and science behind this versatile thin bonding solution. Leveraging a proprietary, solvent-free adhesive coating process, CO2 emissions during manufacturing are substantially reduced compared to a 3M™ solvent-based adhesive coating process. When you are looking for a quality bonding tape, look no further than 3M™ Double Coated Tape GPT-020 because it rises to the challenges of an array of industries.

Additional information

Product Id

Part Number

Weight 15.2 lbs
Brand

Back Side Adhesive Thickness

0.095 mm
3.75 mil

Backing (Carrier) Thickness

0.012 mm
0.47 mil

Core Size


Face Side Adhesive Thickness

0.095 mm
3.75 mil

Length


Width


Primary Liner Thickness

0.1 mm
3.9 mil

pa_total-tape-thickness-without-liner
Adhesive Type

Application

Assembling, Attaching, Bonding, High Strength Adhesion, High Tack Adhesion, Holding, Joining, Laminating, Mounting, Splicing, Tabbing

Back Side Adhesive Type

Modified Acrylic

Backing (Carrier) Material

PET

Clean Removal

Face Side Adhesive Type

Modified Acrylic

Features

Low Surface Energy, High Surface Energy, Permanent Bonding, UV-resistant

Flame Retardant

Indoor/outdoor

Industries

Signage, Specialty Vehicles, Appliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print

pa_maximum-operating-temperature-celsius
pa_maximum-operating-temperature-fahrenheit
pa_minimum-operating-temperature-celsius
pa_minimum-operating-temperature-fahrenheit
Number of Adhesive Sides

Double-sided

Primary Liner

Primary Liner Color

Product Form

Roll

Product Usage
Shelf Life

Substrate

Foam, ABS, Acrylic, Glass, Nylon, PC, Paper, Paint (Powder Coat, Painted Metal, Composite Panel), PVC, Cardboard, Metal

UV Resistant

Yes

Units Per Case
