Product Description

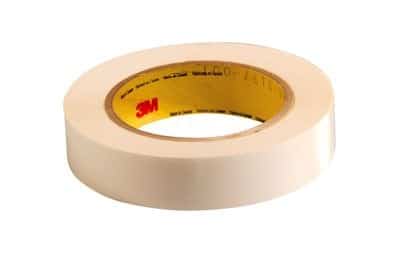

Advantages of 3M™ Double Coated Tape 444
- Excellent for foam and gasket attachment, HSE and LSE plastics such as polyethylene
- Quick flowing adhesive delivers high initial adhesion for faster lamination
- 0.5 mil PET film carrier adds dimensional stability and easier handling during slitting and die-cutting
- 3M™ Adhesive 300 aggressively bonds to many surfaces, including plastics like polyethylene
- 55# 3.2 mil densified kraft liner makes for easy release
3M™ Double Coated Tape 444 features 3M™ Adhesive 300, a medium-firm acrylic adhesive ideal for joining materials that are smooth, thin and have low residual stress. It is excellent for foams and LSE plastics such as polyethylene, as well as HSE plastics. Adhesive is applied to both sides of a 0.5 mil PET film which adds structural stability. This tape features a 55# densified kraft liner.
A Double Coated Tape for Foams and LSE Plastics
Excellent for textured plastics, foams, fabrics and coated papers, 3M™ Double Coated Tape 444 features 3M™ Adhesive 300 on a 0.5 mil polyester (PET) film carrier. The medium-firm acrylic adhesive delivers high initial and final adhesion for efficient laminating procedures. The durable polyester film carrier between the adhesive layers improves the handling and strength of the tape, and adds stability during processes such as die-cutting and slitting. The adhesive is applied at 1.4 mils on the liner side and 2 mils on the face side for effective wet-out. The 55# densified kraft paper release liner makes for fast, efficient application.
About 3M™ Adhesive 300
3M™ Adhesive 300 is a medium-firm acrylic adhesive system featuring both high initial adhesion and good UV and chemical resistance and strong holding power. The design of the adhesive results in high initial adhesion and good temperature performance. The formulation gives 3M™ Adhesive 300 a consistently strong bond across a range of temperatures up to 250°F/121°C short term.
Recommended Applications:
- Medical diagnostic test strips
- Plastic film lamination/bonding
- Splicing
- Foam lamination
- Gasket attachment
Additional information
| Weight | 14.04 lbs |
|---|---|
| Restriction | |
| Unit of Measure | |
| Part Number | |
| Adhesion To Foam | |
| Adhesion To Hse | |
| Adhesion To Lse | |
| Adhesion To Metal | |
| Adhesive Color | |
| Adhesive Peel Initial | |
| Adhesive Peel Ultimate | |
| Backside Adhesive Thickness (mils) | |
| Backside Adhesive Type | |
| Carrier Color | |
| Carrier Material | |
| Carrier Thickness (mils) | |
| Chemical Resistance | |
| China Rohs Below Mcv | |
| Eu Rohs Compliant | |
| Faceside Adhseive Thickness (mils) | |
| Faceside Adhseive Type | |
| Humidty Resistance | |
| Length | |
| Length Metric | |
| Width | |
| Width Metric | |
| Master Size Width | |
| Maximum Operating Temperature (fahrenheit) | |
| Maxmum Operating Temperature (celsius) | |
| Minimum Operating Temperature (fahrenheit) | |
| Moisture Resistance | |
| Nominal Tape Thickness (mils) W/o Liner | |
| Plasticizer Resistance | |
| Primary Liner | |
| Primary Liner Color | |
| Primary Liner Thicknes (mils) | |
| Secondary Liner Thickness (mils) | |
| Shear Strength At 72 Degrees F | |
| Solvent Resistance | |
| Total Thickness With Liner | |
| UPC | |
| Uv Resistance |
