Product Description
Advantages of 3M™ Highland™ Nylon Fully Insulated Female Disconnect
- Nylon-insulated, butted-seam barrel offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires

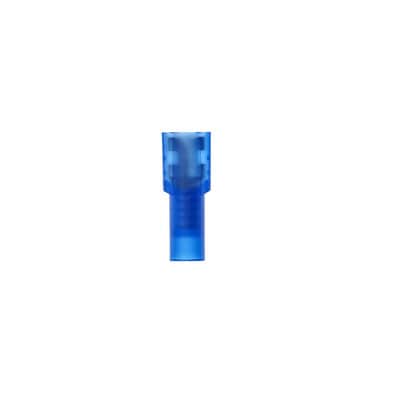

3M™ Highland™ Nylon Fully Insulated Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Highland™ Nylon Fully Insulated Female Disconnect attaches to the mating part with a tongue that slips over the male tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant with a stepped design to ensure mistake-proof crimping. RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.085 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Color | |
| Connection Width | 0.187 in |
| CSA File Number | LR22190 |
| Diameter | |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Mates with Female Width | 0.187 in |
| Mates with Male Tab Width (W') | 0.1087 in |
| Maximum Conductor Size | 14 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 16 AWG |
| Overall Diameter | 0.23 in |
| Overall Length | |
| Overall Width | 0.3 in |
| Pad Width | 0.187 in |
| Tab Width | 0.187 |
| Terminal Style | Fully insulated |
| Terminal Type | Disconnect |
