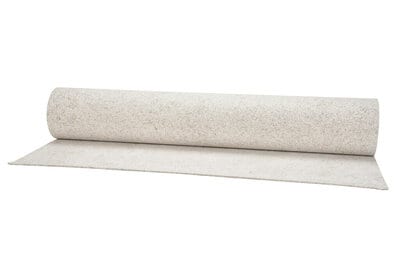

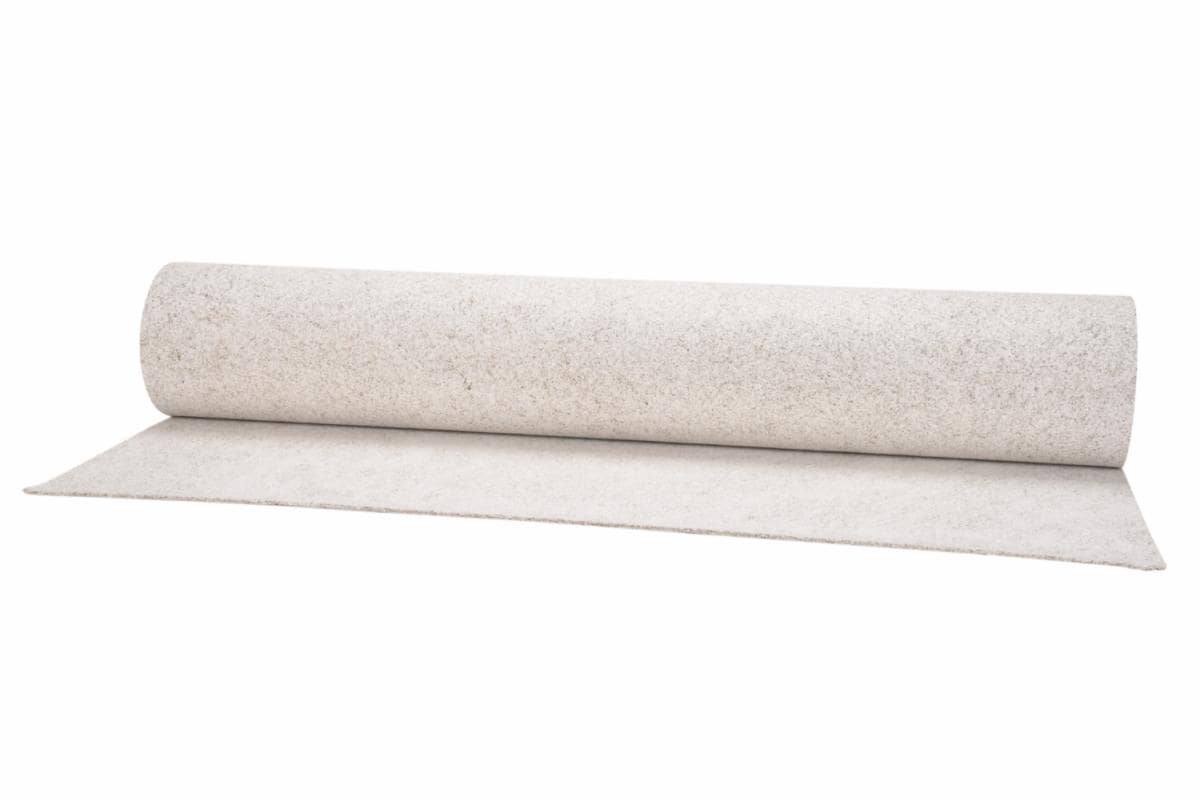

3M™ Interam™ Mat I-10, 50 in x 25 ft

Product Description

Advantages of 3M™ Interam™ Mat I-10

• Ceramic fiber based materials expand in thickness only to provide low-density insulation when exposed to high temperatures or flames
• Flexible mats can conform around complex shapes and surfaces to allow them to be easily incorporated into various fire protection systems
• Allows heat dissipation in unexpected state
• Lightweight mats are easily cut to the desired size and shape
• Easy to install and no surface preparation is required

3M™ Interam Mat I-10 is an easy-to-install heat-absorbing wrap system comprised of ceramic fiber blanket material that expands into low-density insulation blankets when exposed to high temperatures or flames. This material is flexible and lightweight, making it easy to install and manipulate with minimal or no surface preparation.

On-Demand Fire and Heat Solutions
Tested for a full range of critical applications, 3M™ Interam Mat I-10 are constructed to protect against fire and act as a high temperature sealing mechanism. The ceramic material encased inside is designed to expand into low-density insulation blankets when exposed to high temperatures or flames. This mat can be easily wrapped around complex shapes and surfaces. This feature allows them to be easily incorporated into various fire protection systems such as electrical raceway fire-breaks and fire rated roofing systems. Expose to fire will cause intumescence or expansion, thus filling openings to blow the movement of flames and retard the transfer of heat. The intumescent characteristic of the material inside offers another unique opportunity for using mats as a high temperature sealing or mounting device. The mat’s pressure of expansion can also be used to hold devices in place.

Recommended Applications

• Cable tray fire breaks
• Fire rated roofing
• High temperature gasketing and sealing applications
• Industrial furnace seals
• Wood stove catalytic converter mounting device
