Product Description

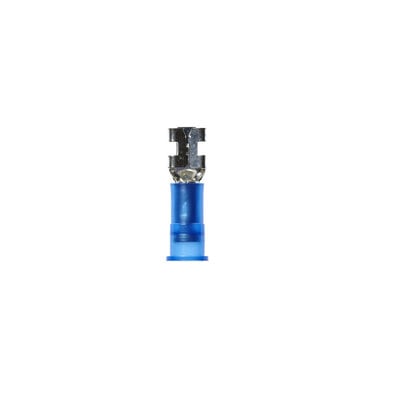

Scotchlok Female Disconnect Nylon Insulated
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
The 3M Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon sleeve is abrasion-resistant, flared and offers a positive grip, while its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Female Disconnect Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 1.192 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.187 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Barrel Inside Diameter | 0.085 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Nylon with Insulation Grip |
| Mates with Female Width | 0.187 Inch |
| Mates with Male Tab Width (W') | 0.187 Inch |
| pa_maximum-insulation-outer-diameter-imperial | |
| Overall Length (Imperial) | 0.77 in |
| Pad Width | 0.187 in |
| Tab Width | 0.250 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Dimensions | 9.4 × 3.6 × 5.1 in |
