Product Description

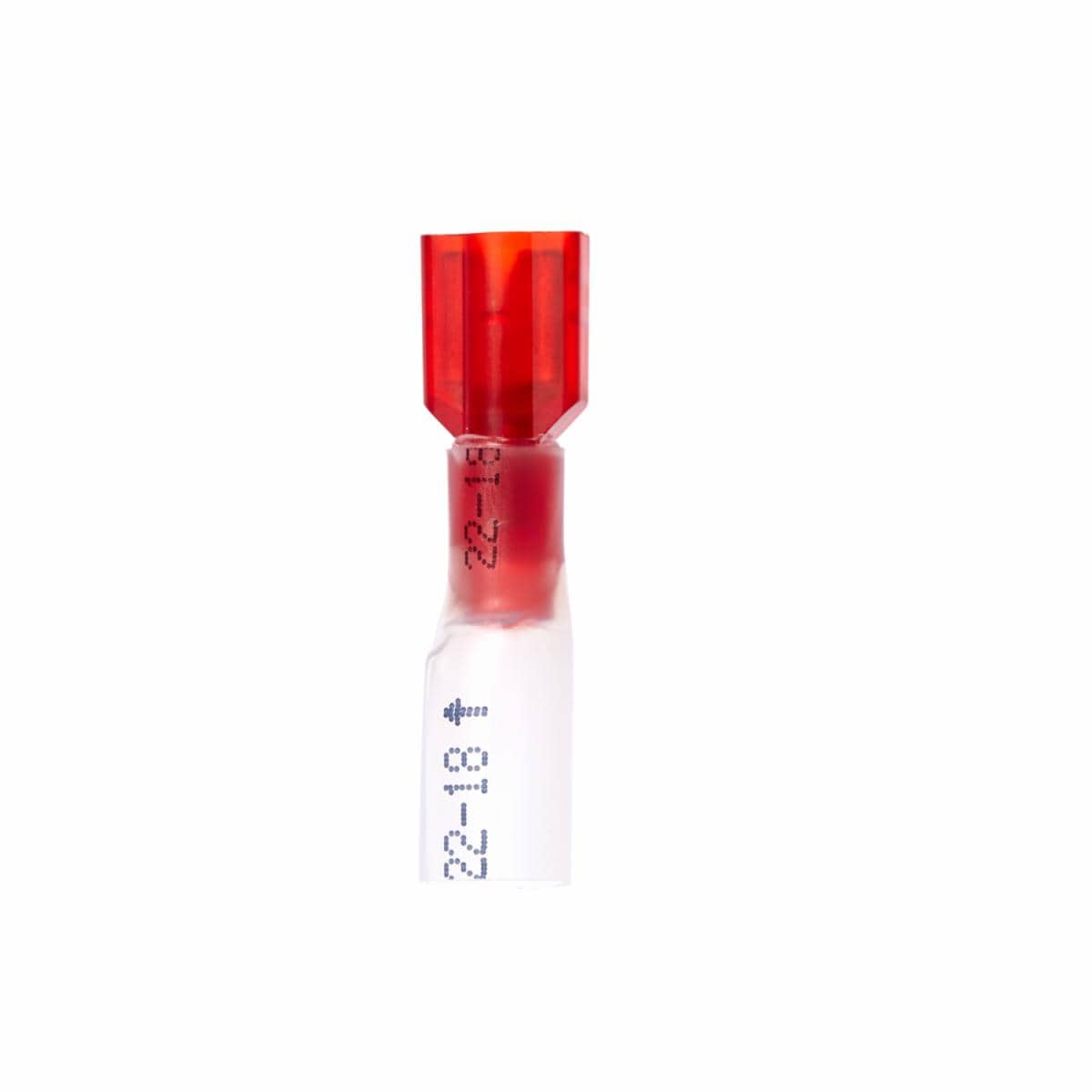

Scotchlok Female Disconnect Heatshrink Nylon In…
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with 0.25-in wide male tab
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Withstands a maximum temperature of 221 degrees F (105 degrees C)
3M Scotchlok Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Female Disconnect Heatshrink Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.016 lbs |
| Brand | |
| Connection Width | 0.25 in |
| Maximum Conductor Size | 1 mm² |
| Minimum Conductor Size | .34 mm² |
| Barrel Inside Diameter | 0.080 Inch |
| Barrel Style | Butted |
| Diameter (D) | 0.23 Inch |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Heat Shrink |
| Male Tab Width (W') | 0.250 Inch |
| Overall Diameter (Imperial) | 0.23 in |
| Overall Length (Imperial) | 1.2 in |
| Overall Width (Imperial) | 0.37 in |
| Pad Width | 0.25 in |
| Tab Width | 0.187 |
| Terminal Style | Fully Insulated |
| Terminal Type | Disconnect |
| Units Per Case | |
| Dimensions | 1.6 × 3.1 × 4.4 in |
