Product Description

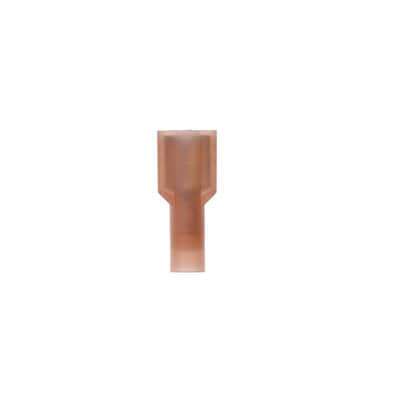

Scotchlok Female Disconnect
- Allows for quick and easy disconnect of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Mates with 0.25-in wide male tab
- Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This terminal has a butted seam with an interlocking barrel which provides electrical contact after crimping. It has an abrasion-resistant, fully insulated, flared nylon sleeve with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok Female Disconnect, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Product Id | |
|---|---|
| Part Number | |
| UPC | |
| Weight | 0.003 lbs |
| Make to Order | |
| Brand | |
| Connection Width | 0.25 in |
| Maximum Conductor Size | 1 mm² |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | .34 mm² |
| Barrel Inside Diameter | 0.076 Inch |
| Barrel Length (Imperial) | 0.25 Inch |
| Barrel Style | Interlocking Barrel |
| CSA File Number | LR22190 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Nylon |
| Male Tab Width (W') | 0.250 Inch |
| Mates with Female Width | 0.25 Inch |
| Mates with Male Tab Width (W') | 0.25 Inch |
| pa_maximum-insulation-outside-diameter | |
| Overall Length (Imperial) | 0.91 in |
| Pad Width | 0.25 in |
| Tab Width | 0.250 |
| Terminal Style | Fully Insulated |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case |
