Product Description

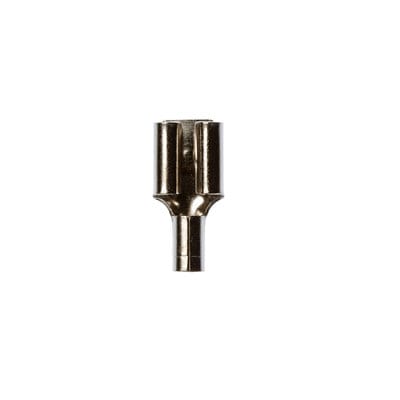

Scotchlok High Temperature Female Disconnect No…
- Accommodates wire sizes 16 to 14 AWG
- Allows for quick and easy disconnect of wires
- Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
- Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- This high-temperature female disconnect terminal has dents and rolled edges to allow for excellent holding force
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a maximum temperature of 900 degrees F (482 degrees C)
3M Scotchlok High-Temperature Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a non-insulated, butted-seam barrel with a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
For more information about Scotchlok High Temperature Female Disconnect Non-Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 0.218 lbs |
| Brand | |
| Connection Width | 0.25 in |
| Maximum Conductor Size | 14 AWG |
| Minimum Conductor Size | 1.5 mm² |
| Length | |
| Barrel Inside Diameter | 0.095 Inch |
| Barrel Length (Imperial) | 0.23 Inch |
| Barrel Style | Butted |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Material | Non-insulated |
| Mates with Female Width | 0.250 Inch |
| Mates with Male Tab Width (W') | 0.250 Inch |
| Overall Width (Imperial) | 0.25 in |
| Pad Width | 0.25 in |
| Product Color | Metal |
| Solution for | Wireless Network: Infrastructure Accessories |
| Terminal Style | High Temp |
| Terminal Type | Disconnect |
| Units Per Case | |
| Dimensions | 1.6 × 3.1 × 4.4 in |
