Product Description

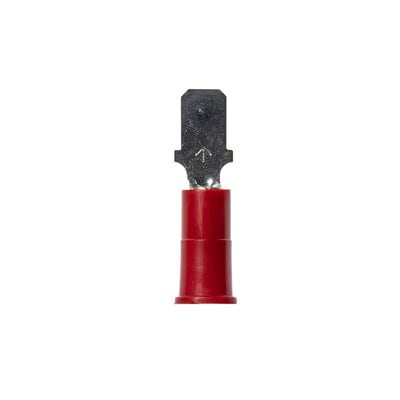

Scotchlok Male Disconnect Vinyl Insulated
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- This male disconnect terminal offers excellent holding force
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
For more information about Scotchlok Male Disconnect Vinyl Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.004 lbs |
| Brand | |
| Connection Width | 0.187 in |
| Maximum Conductor Size | 1 mm² |
| pa_maximum-insulation-outer-diameter | |
| Minimum Conductor Size | .34 mm² |
| Length | |
| Barrel Inside Diameter | 0.08 Inch |
| Barrel Length (Imperial) | 0.24 Inch |
| Barrel Style | Butted |
| CSA File Number | LR22190 |
| Diameter (D) | 0.39 Inch |
| Disconnect Type | Male |
| Fastener Orientation | Male |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Male Tab Width (W') | 0.187 Inch |
| Material | |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_maximum-recommended-voltage-rating | |
| Overall Diameter (Imperial) | 0.39 in |
| Pad Width | 0.187 in |
| Product Color | Red |
| Solution for | Wireless Network: Infrastructure Accessories |
| Tab Width | 0.250 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units Per Case | |
| Voltage Application | Low Voltage |
| Dimensions | 1.6 × 3.1 × 4.4 in |
