Product Description

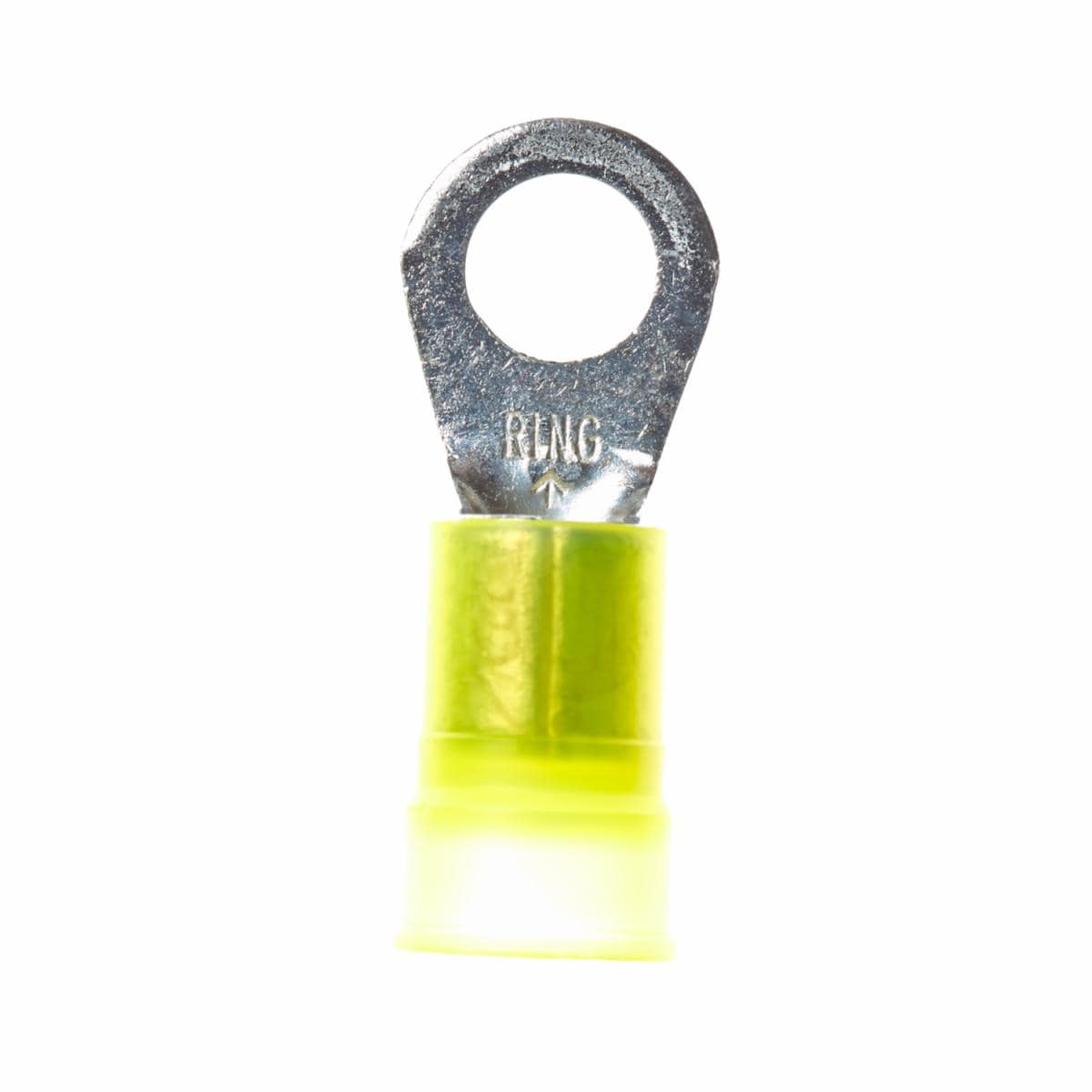

Scotchlok Ring Nylon Insulated
- Flared portion of the nylon sleeve offers easy insertion of wires
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. The brazed-seam barrel of this terminal provides electrical contact after crimping. The abrasion-resistant, flared, nylon-sleeve insulation with a stepped design, ensures mistake-proof crimping.
For more information about Scotchlok Ring Nylon Insulated, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Weight | 0.039 lbs |
| Brand | |
| Connection Width | 0.375 in |
| Maximum Conductor Size | 21.2 mm² |
| Minimum Conductor Size | 21.2 mm² |
| Barrel Length (Imperial) | 0.39 Inch |
| Barrel Style | Brazed Seam |
| CSA File Number | LR22190 |
| Connection Type | Crimp |
| Insulation Material | Nylon |
| pa_maximum-operating-temperature-celsius | |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_maximum-recommended-voltage-rating | |
| Maximum Voltage Rating | 600 to 1000 V |
| pa_operating-temperature-fahrenheit | |
| pa_operating-temperature-range-celsius | |
| pa_operating-temperature-range-fahrenheit | |
| Overall Length (Imperial) | 1.74 in |
| Overall Width (Imperial) | 0.68 in |
| Ring Type | Standard |
| Terminal Style | Standard |
| Terminal Type | Ring |
| UL File Number | E23438 |
| Dimensions | 1.6 × 3.1 × 4.4 in |
