Product Description

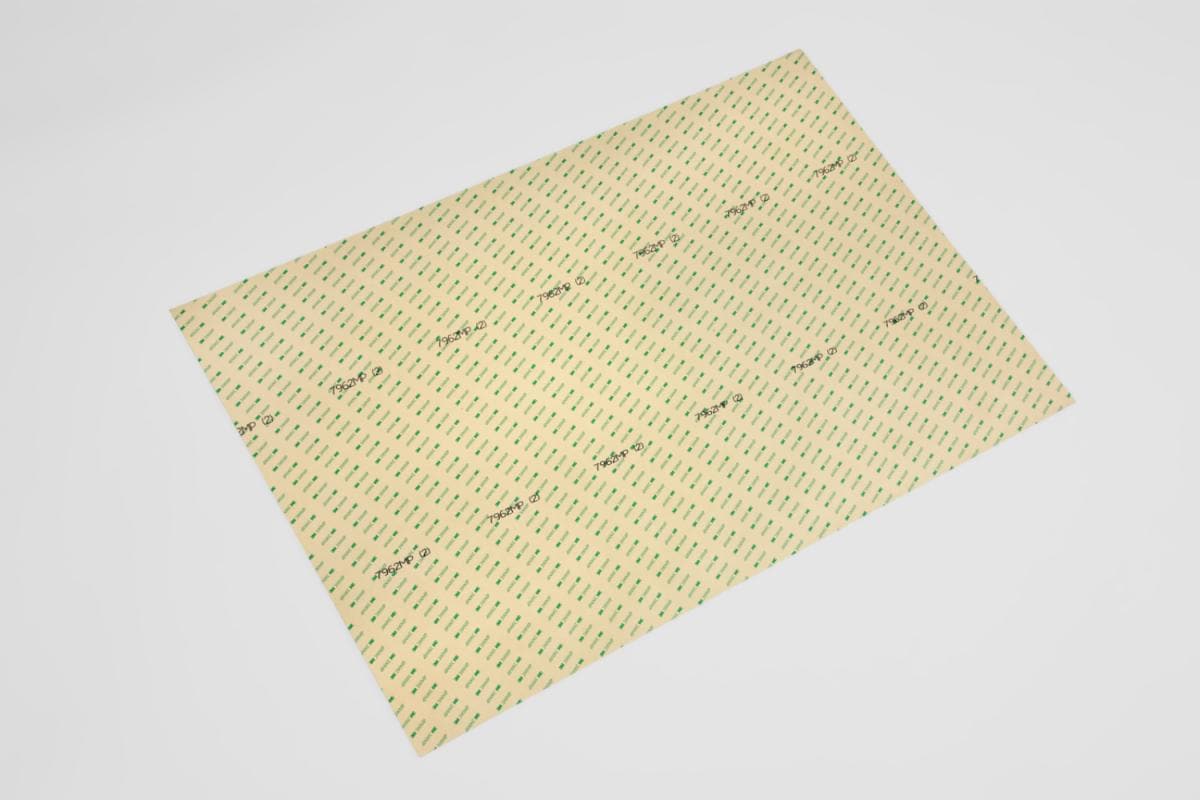

Double Coated Tape 9824
- 0.5 mil clear PET carrier adds dimensional stability
- Caliper-controlled 55# hard liner for consistent base in rotary printing and die cutting of labels
- Good shear and bonding characteristics
- Good temperature, chemical and humidity resistance
- Medium tack to high surface energy materials such as foam and other substrates
High Initial Adhesion and Good Holding Power
Engineered with adhesive on both sides of the polyester film carrier, the 3M™ Double Coated Tape 9824 provides good chemical resistance and offers an excellent continuous temperature resistance range from -40°F to 120°F (-40°C to 49°C). The ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. Once properly applied, low temperature holding is generally satisfactory.
Recommended Applications
- General purpose foam and fabric lamination
- General purpose lamination for fabricated parts
About 3M™ Adhesive 340
3M™ Double Coated Tape 9824 features 3M™ Adhesive 340 on both the face and back sides – a medium-firm acrylic adhesive that provides high initial adhesion to a wide variety of surfaces, including high surface energy plastics. A clear polyester film carrier between the adhesive layers adds dimensional stability for easier handling during slitting and die-cutting.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.
Double coated tapes offer a multitude of advantages over mechanical fasteners or liquid glues, including an even regular bond without gaps, reduced risk of corrosion, fast application, more flexible product design, improved appearance and they are frequently more economically efficient.
Bringing Better Ideas to the Surface through Science and Innovation
In the 3M Industrial Adhesives and Tapes Division, 3M apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, the technologies and expertise help you deliver competitive products to the market faster and more efficiently.
For more information about Double Coated Tape 9824, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 127 lbs |
| Make to Order | |
| Brand | |
| Back Side Adhesive Thickness | 0.032 mm |
| Backing (Carrier) Thickness | 0.013 mm |
| Core Size | |
| Face Side Adhesive Thickness | 0.032 mm |
| Length | |
| Width | |
| Primary Liner Thickness | 0.08 mm |
| pa_total-tape-thickness-without-liner | |
| Adhesive Type | |
| Back Side Adhesive Type | High Tack Acrylic Adhesive 340 |
| Backing (Carrier) Material | Polyester Film |
| Carrier Material | |
| Carrier Thickness | 0.5 mil |
| Carrier Thickness (Metric) | 0.013 mm |
| Face Side Adhesive Type | High Tack Acrylic Adhesive 340 |
| Industries | Point of Purchase, Retail, Automotive, Converter Solutions, General Industrial, Medical, Packaging, Paper, Print |
| Master Size Length (Metric) | 164.6 m |
| Master Size Width (Metric) | 137 cm |
| pa_maximum-operating-temperature-fahrenheit | |
| pa_minimum-operating-temperature-fahrenheit | |
| Overall Thickness (Imperial) | 2.3 mil |
| Primary Liner | |
| Primary Liner Color | |
| Product Color | Transparent |
| Product Form | Roll |
| Units Per Case | |
| Dimensions | 57.4 × 11.1 × 11.1 in |
