Product Description

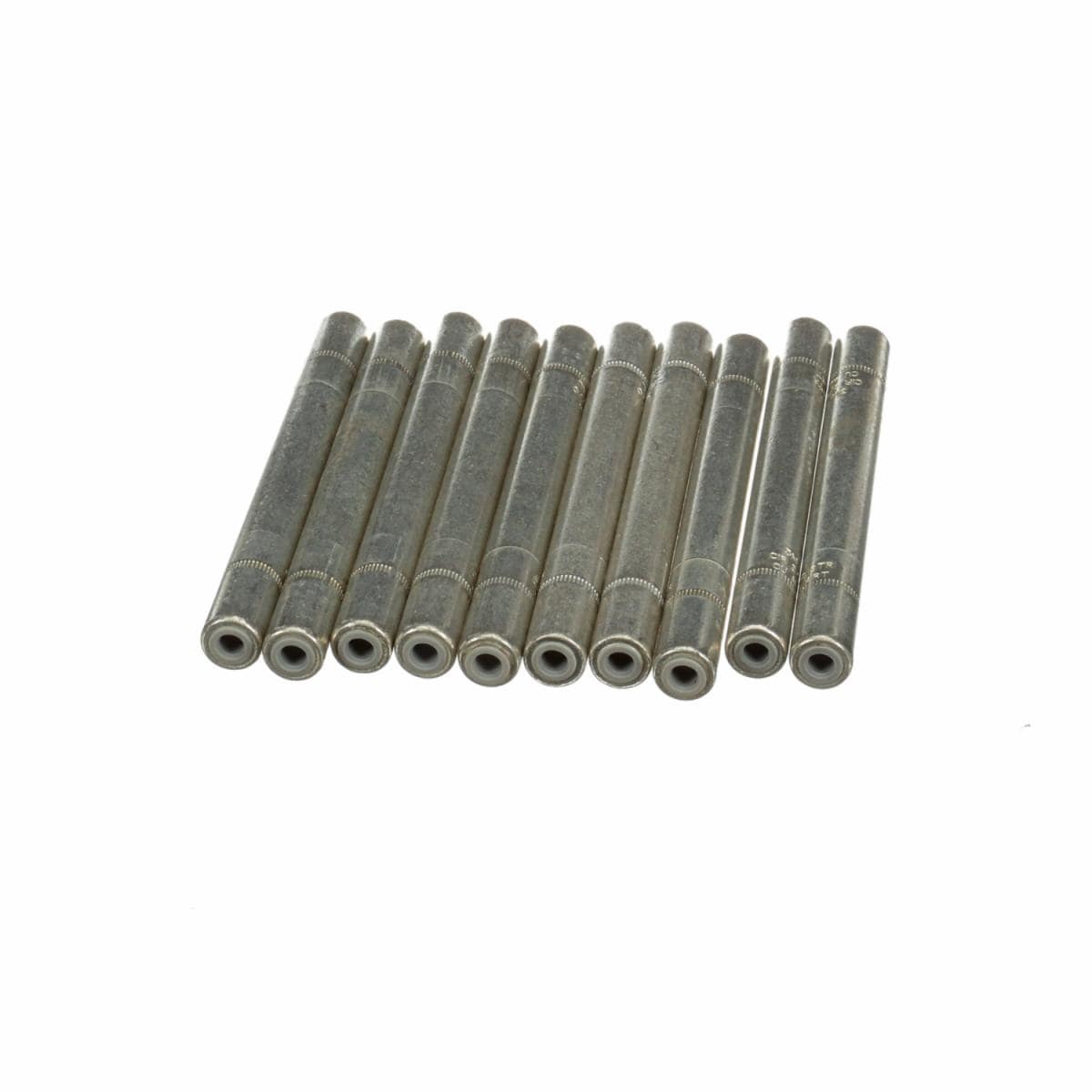

Motor Lead Inline Splice 5333
- Accommodates wire size of 10 to 4 AWG
- Designed for splicing motor lead cables to the incoming feeder cables
- For use with shielded or non-shielded cables
- Includes 3 rolls Scotch Electrical Stress Control Tape 2220, 12 adapters, 3 instruction sheets and more
- Rated for 5/8 kV applications
- Suitable for use with 3M Scotchlok Copper One Hole Lug Series 30000 compression lugs or other UL Listed copper lugs
- Withstands temperatures of 90° C (194° F)
3M Motor Lead Splicing Kits 5331-5334 Series are designed to be used with copper compression, one- or two-hole lugs. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal on the inline kits. After being crimped onto the cables, the lugs are bolted together in an inline configuration, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M Scotchlok Copper One Hole Lug Series 30000, or other UL listed copper lugs, can be used.
In addition, 3M Motor Lead Splicing Kits 5331-5334 require vinyl tape which can also be purchased separately. For inline splice kits: The longitudinal space required for assembly will be approximately 2 (splice cover length), to allow space for the splice while the connection is being made. Kit contents include: • (3) Cold Shrink tubes • (12) Adapters • (3) Rolls Scotch Stress Control Tape 2220 • (3) Bags of solvent cleaning cloths • (6) Tubes of silicone grease • (3) Rolls Scotch Linerless Rubber Splicing Tape 130C • (3) Instruction sheets
For more information about Motor Lead Inline Splice 5333, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 6.1 lbs |
| Make to Order | |
| Brand | |
| Conductor Sizes (Imperial) | |
| Connection Type | Inline (Shielded or Non-shielded) |
| pa_insulation-outside-diameter-range | |
| pa_insulation-outside-diameter-range-metric | |
| pa_insulation-outside-diameter-by-conductor-size | |
| pa_insulation-outside-diameter-by-conductor-size-metric | |
| Maximum Bolt Length | 1-1/2 in |
| Maximum Bolt Length (Metric) | 38.1 mm |
| Maximum Feeder Lead Size | 250 kcmil |
| Maximum Motor Lead Size | 250 kcmil |
| Maximum Operating Voltage | 8 kV |
| Range Feeder Cable (AWG & kcmil) | 1/0-250 |
| Splice Cover Inner Diameter | 2-2/0 AWG: 0.50 in / 3/0 AWG-250 kcmil: 0.60 in |
| pa_splice-cover-inner-diameter-metric | |
| Splice Cover Length | 15-16 in |
| Splice Cover Length (Metric) | 381.0-406.4 mm |
| Splice Type | |
| Units Per Case | |
| Voltage | 5 kV – 8 kV |
| Dimensions | 18.8 × 6.3 × 8.6 in |
