3M Thermally Conductive Acrylic Interface Pad 5550H is a thermal interface material designed to transfer heat from heat-generating components to heat sinks and cooling devices to improve device reliability and component lifespan. This product can be used for different applications including EV battery thermal management and more.

3M Bumpon Protective Product SJ6115 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The cylindrical – flat top provides excellent load bearing and anti-skid performance.

3M Bumpon Protective Product SJ5327 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The hemispherical shape provides excellent sound damping and energy absorption.

3M Thermally Conductive Acrylic Interface Pad 5590H is a moderately conformable and medium-soft pad with high thermal conductivity of 2.8 W/m-K (3M test method). This pad consists of a slightly tacky acrylic elastomeric sheet filled with thermally conductive ceramic particles. It is designed to transfer heat from heat generating components to heat sinks and cooling devices, improving device reliability and extending the component’s life.

3M Electrically Conductive Adhesive Transfer Tape 9712 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive carbon fiber scrim carrier. It offers a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This tape can be die cut and provides excellent workability, easy handling and has nonmetallic product construction for specialty applications. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

3M Thermally Conductive Acrylic Interface Pad 5500H is a conformable thermal interface material designed to transfer heat from heat-generating components to heat sinks and cooling devices to improve device reliability and component lifespan. This product can be used for different applications including EV battery thermal management and more.

3M Lapping Film 263X Discs are aluminum oxide mineral coated on 3 mil polyester film with a durable resin system. Available in 7 grades between 0.05 and 60.0 micron. Common applications include fiber optic finishing and roll superfinishing.

3M Lapping Film Sheet 261X is the standard of 3M’s lapping films. The product is made from precisely graded aluminum oxide particles coated on a 3 mil polyester film. The product provides uniform finishes on various substrates and delivers consistent cut rate, finish and life.

3M Electrically Conductive Gasket Tape MSG6000F Series consists of a conductive fabric, highly conductive grey foam, and black pressure-sensitive adhesive (PSA). It offers excellent grounding performance between substrates and also has high EMI shielding performance.

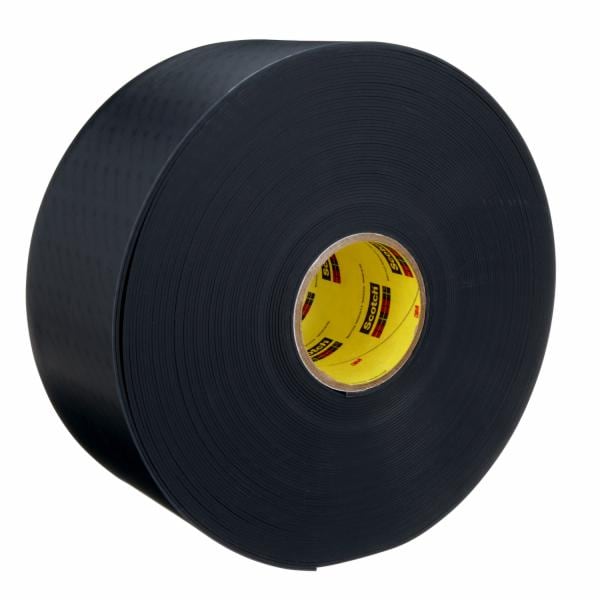

3M Bumpon Resilient Rollstock SJ6016 is a self-adhesive rubber bumper designed to be used as feet, stops and spacers. The rollstock format is excellent for die-cut shapes with various thickness requirements.

Aluminum oxide mineral coated on 3 mil polyester film with PSA back. Coated with a softer resin system, available in 1.0 micron. Used in polishing fiber optics and precision lapping operations. Provides smooth surface on precision electronic parts.

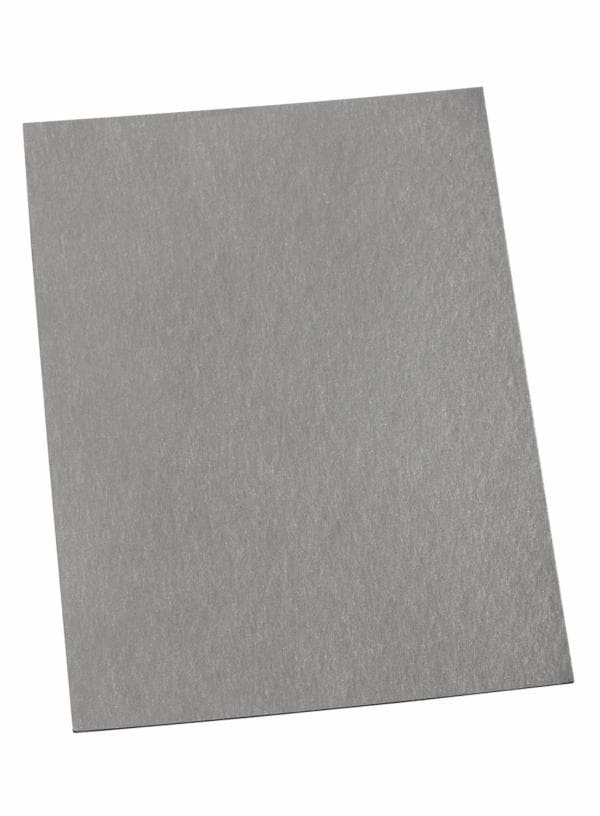

The 3M EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.
