Product Description

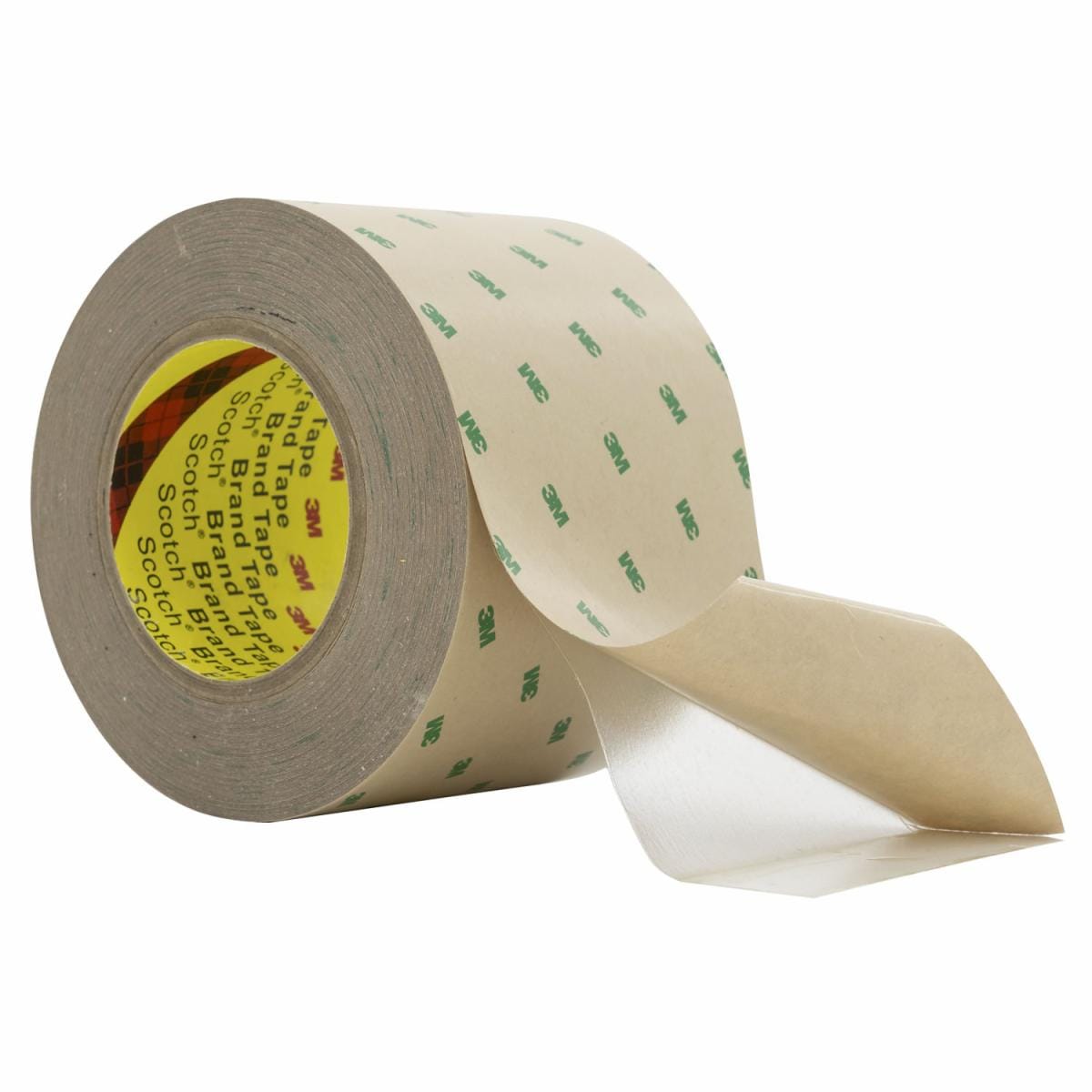

Double Coated Film Tape 9795
- .5 mil PET carrier adds dimensional stability and makes for easier handling during lamination and die-cutting
- 3M Adhesive 420 delivers high impact and temperature resistance
- 4.2 mil 58# printed PCK liner adds stability for storage and die-cutting
- Designed with 2.8 mil face side adhesive and 2.3 mil adhesive on the back side for a range of applications
An Easy-to-Process Tape for Tough Applications
3M Double Coated Tape 9795 is a 5.7 mil PET tape designed for application and use in a range of temperatures. This tape features a .5 mil polyester film carrier which delivers excellent handling during processing such as slitting, die-cutting and laminating. The face side is coated with 2.8 mils and the back side with 2.3 mils of 3M Adhesive 420, which is excellent for applications such as bonding bezels, cover lenses and electronic components. This adhesive delivers very high impact resistance, initial adhesion, and exceptional temperature resistance.
A 4 mil, 58-lb. polycoated kraft printed liner adds stability for efficient processing such as die-cutting.
Recommended Applications
- Bezel bonding
- Cover lens bonding
- Display bonding
- Electronic component bonding
- Touch panel bonding
About The Acrylic Adhesive 420
3M Adhesive 420 is a medium firm acrylic adhesive that provides good adhesion to metals and medium surface energy (MSE) plastics such as polycarbonate, ABS, acrylic and polyimide. It delivers excellent temperature resistance in tough application environments, with an operating temperature of up to 250°F/121°C and short-term temperature resistance up to 300°F/149°C. It also bonds at temperatures as low as 32°F/0°C, and provides impact resistance.
About Double Coated Tape
In general, double coated tape is composed of a paper, film or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobbies.
Bringing Better Ideas to the Surface through Science and Innovation
In the 3M Industrial Adhesives and Tapes Division, 3M apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, the technologies help customers like you deliver competitive products to the market faster and more efficiently.
For more information about Double Coated Film Tape 9795, visit the official 3M website.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Can’t find what you need? Contact us today for assistance.
Buying in bulk? Apply for special discounts on large quantity orders.
Additional information
| Unit of Measure | |
|---|---|
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Weight | 58.1 lbs |
| Make to Order | |
| Brand | |
| Back Side Adhesive Thickness | 0.058 mm |
| Length | |
| Width | |
| pa_backing-carrier-thickness-metric | |
| Product Color | Transparent |
| Dimensions | 58.1 × 8.4 × 8.4 in |
