Product Description
Advantages of 3M™ Double Coated Paper Tape 410M
- 6 mil double coated paper tape of natural rubber adhesive with a paper release liner
- 3M™ Adhesive 860 offers high initial adhesion to a variety of substrates
- Heavy paper carrier is treated to improve strength and provide dimensional stability
- Double coated tape is ideal for temporary attaching or fixturing
- Solvent-free manufacturing process helps meet environmental best practices goals

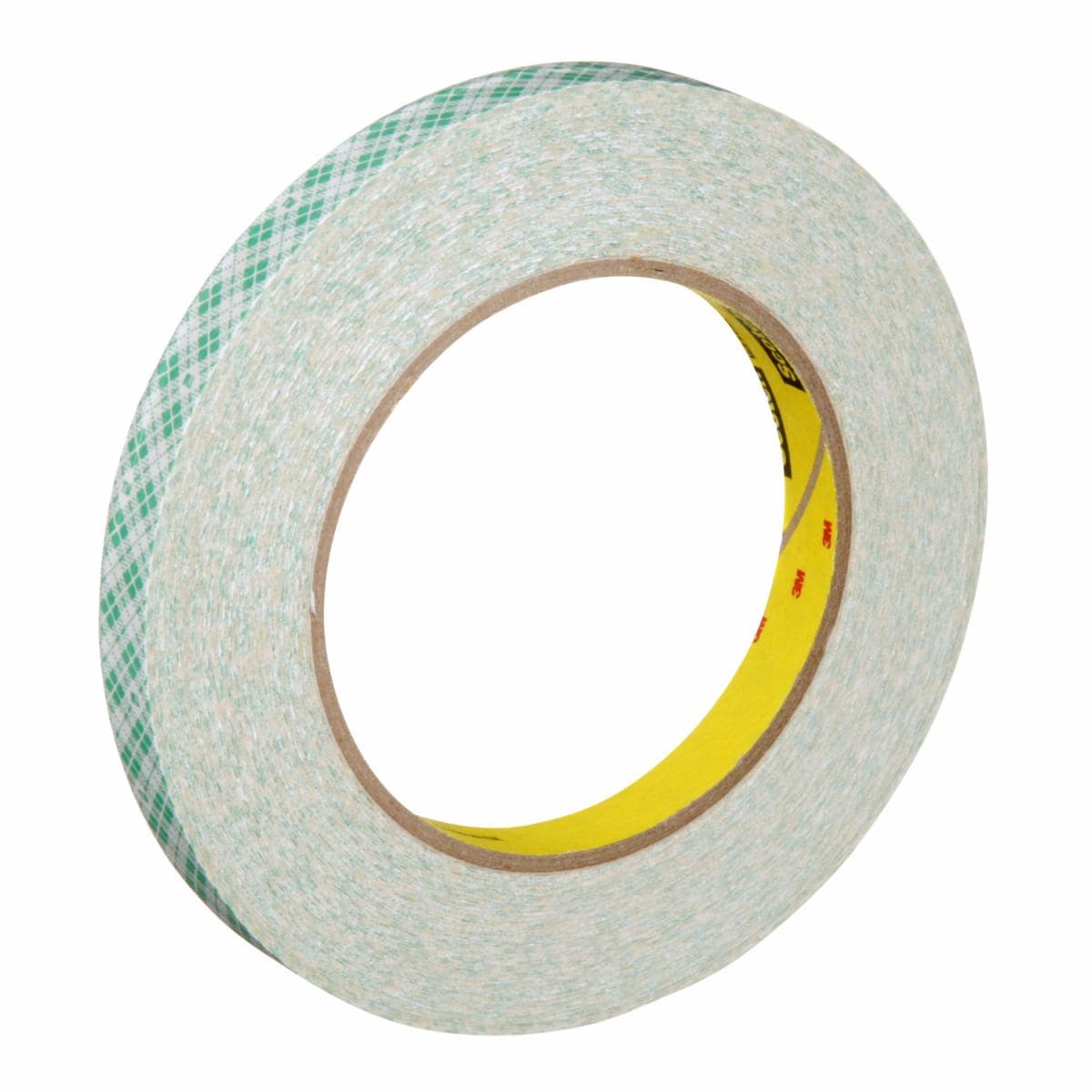

3M™ Double Coated Paper Tape 410M tape is a hand-tearable double coated tape with a natural rubber adhesive system designed to offer excellent adhesion to many types of substrates. 3M mounts the adhesive on a paper carrier treated to increase strength and removability characteristics from high internal strength surfaces. It features 3M™ Adhesive 860 and mounted on a paper liner. This robust 54 lb. densified kraft paper release liner is green and white plaid for easy identification and adds dimensional stability to the tape during processes such as die-cutting and automated dispensing. It allows for easy deployment, helps reduce edge roll and protects the tape from humidity extremes. Made with a solvent-free manufacturing process, this tape can also help meet environmental best practices and goals.
Enduring Bond
3M™ Adhesive 860 is a soft, rubber resin, pressure sensitive adhesive system. It provides a high initial adhesion and good holding power to a wide variety of materials. This adhesive is ideal for initial application indoors and at room temperature applications, but when properly applied it then performs under a wide range of temperatures from -40°F / -40°C up to 150°F / 65°C. It also offers short term heat resistance up to 180°F / 82°C.
Recommended Applications
- Splicing and core starting of papers, foils, films and fabrics
- Golf club grip attachment
- Mounting rubber or photopolymer printing plates to print cylinders
- Temporary holding while parts are being finished in the milling process
Additional information
| Weight | 18.936 lbs |
|---|---|
| Faceside Adhseive Type | |
| Width | |
| Length | |
| Color | |
| Humidty Resistance | |
| Faceside Adhseive Thickness (mils) | |
| Master Size Width | |
| Chemical Resistance | |
| Carrier Material | |
| Carrier Color | |
| Backside Adhesive Type | |
| Backside Adhesive Thickness (mils) | |
| Maximum Operating Temperature (fahrenheit) | |
| Adhesive Peel Initial | |
| Shear Strength At 72 Degrees F | |
| Per Case | |
| Uv Resistance | |
| Solvent Resistance | |
| Maxmum Operating Temperature (celsius) | |
| Primary Liner Thicknes (mils) | |
| Primary Liner Color | |
| Primary Liner | |
| Plasticizer Resistance | |
| Nominal Adhesive Thickness (mils) | |
| Moisture Resistance | |
| Minimum Operating Temperature (fahrenheit) | |
| Adhesive Peel Ultimate | |
| Adhesion To Metal | |
| Adhesion To Hse | |
| Adhesion To Foam | |
| Previous 3M Stock Number | |
| Size |
