Product Description

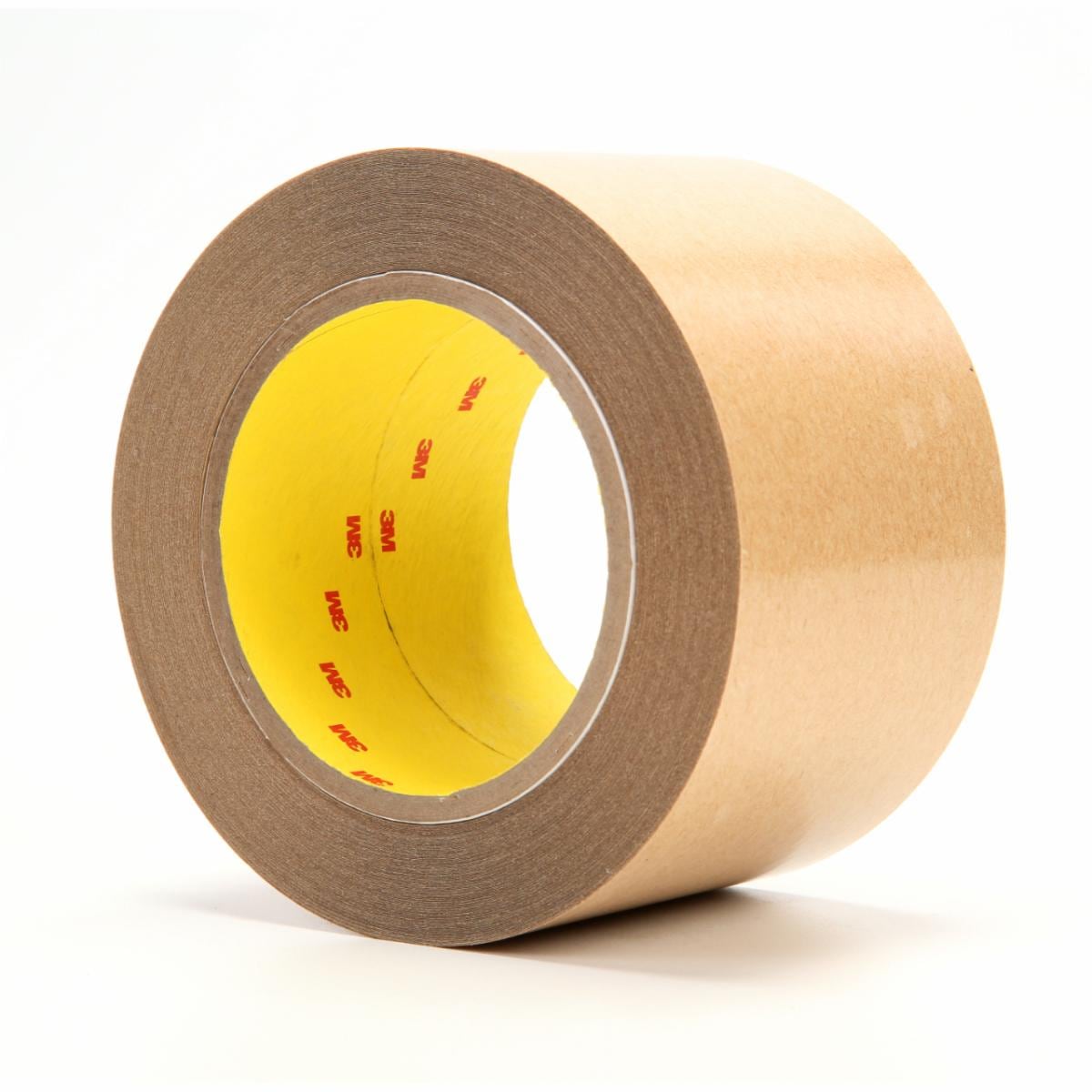

Advantages of 3M™ Double Coated Tape 415
- Ideal for printing applications, with high tack and adhesion to most paper stocks
- Double sided adhesion increases dimensional stability for easy handling during print splicing
- Excellent UV, moderate temperature and good humidity resistance to ensure performance in a variety of situations
- Densified kraft paper liner ensures easy handling
- Good adhesion to a variety of substrates, including low and high surface energy substrates
3M™ Double Coated Tape 415 is a double coated tape that offers a balance of high initial adhesion and good holding power on a variety of substrates, especially paper. Double sided adhesion increases dimensional stability for easy handling, making it an ideal choice for both zero speed and flying splices during printing.
Ongoing Production
3M™ Double Coated Tape 415 is a 4.0 mil double coated polyester tape with 3M™ Acrylic Adhesive 400 mounted on a 60. lb densified kraft paper liner. It offers excellent UV resistance, with good temperature and humidity resistance for high performance splicing during rigorous printing applications. This tape will perform well up to 180°F/82°C in the short term, and up to 150°F/65°C for days or weeks. It adheres well to a variety of high and low surface energy substrates including metals, glass, wood, paints and many plastics, as well as most grades of paper, films and foils, and clay coated and corrugated paper stock.
Recommended Applications
- High-speed flying splices on most grades of paper
- Zero speed splices on most grades of paper
- Web splicing
- Core starting
- Films and foils
Additional information
| Weight | 17.256 lbs |
|---|---|
| Faceside Adhseive Thickness (mils) | |
| Thickness Metric | |
| Thickness | |
| Length Metric | |
| Length | |
| Color | |
| Humidty Resistance | |
| Faceside Adhseive Type | |
| Eu Rohs Compliant | |
| Width Metric | |
| China Rohs Below Mcv | |
| Chemical Resistance | |
| Carrier Thickness (mils) | |
| Carrier Material | |
| Carrier Color | |
| Width | |
| Backside Adhesive Thickness (mils) | |
| Per Case | |
| Uv Resistance | |
| Solvent Resistance | |
| Shear Strength At 72 Degrees F | |
| Primary Liner Thicknes (mils) | |
| Master Size Width | |
| Primary Liner | |
| Plasticizer Resistance | |
| Nominal Adhesive Thickness (mils) | |
| Moisture Resistance | |
| Minimum Operating Temperature (fahrenheit) | |
| Maxmum Operating Temperature (celsius) | |
| Maximum Operating Temperature (fahrenheit) | |
| Backside Adhesive Type | |
| Adhesive Peel Ultimate | |
| Unit of Measure | |
| Adhesive Peel Initial | |
| Adhesion To Metal | |
| Adhesion To Lse | |
| Adhesion To Hse | |
| Adhesion To Foam | |
| Previous 3M Stock Number | |
| Make to Order |
